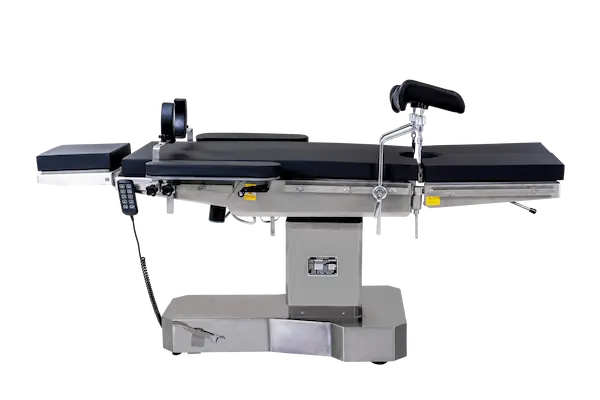

The AM-Y09A is an electric surgical operation table with four-section articulation, radiolucent tabletop options, and up to 300 mm longitudinal sliding, for general, cardiac, and orthopedic surgery.
Key Specifications
| Technical Spec | AM-Y09A Details |
|---|---|
| Drive System | High-performance electric drive |
| Max Load Capacity | ≤200 kg / 440 lbs |
| Height Range | 700–950 mm |
| Frame Material | #304 stainless steel |
| Horizontal Displacement | up to 300 mm |
| Trendelenburg / Reverse | ±25° |
| Lateral Tilt | ±20° |
| Kidney Bridge Height | ≥110 mm |
| Battery Backup | Built-in rechargeable battery |
Features
- Four-section tabletop with independent head, back, seat, and leg adjustments
- Electric drive with low-noise operation (typically <50 dB)
- Radiolucent tabletop options including carbon fiber for reduced imaging artifact
- Longitudinal sliding up to 300 mm for C-arm clearance
- #304 stainless steel base and column
- Seamless anti-static memory foam mattress
- Built-in rechargeable battery backup
Applications
General surgery, cardiac surgery, and orthopedics in operating rooms that require smooth positioning, imaging compatibility, and stability.
Model Comparison
| Specification | AM-Y09B CDW | AM-Y09B GK (Ortho) | AM-Y09B DHYX (Imaging) | AM-19A ZN |
|---|---|---|---|---|
| Table size | 217×55 cm | 217×55 cm | 240×53 cm | 207×50 cm |
| Height range | 55–105 cm | 68.5–113.5 cm | 70–100 cm | 65–90 cm |
| Lateral tilt | 20°/20° | 20°/20° | 18°/18° | ≥20°±5° |
| Trendelenburg/Reverse | 30°/30° | 30°/30° | 22°/22° | ≥30°±5° |
| Back plate | 90°/40° | 90°/40° | 60°/18° | up ≥80°/down ≥35° |
| Kidney bridge | 12 cm | 12 cm | — | ≥120 mm |
| Longitudinal slide | 30 cm | 35 cm | 26 cm (electric) | ≥360 mm |
| Load capacity | 250 kg | 350 kg | — | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
