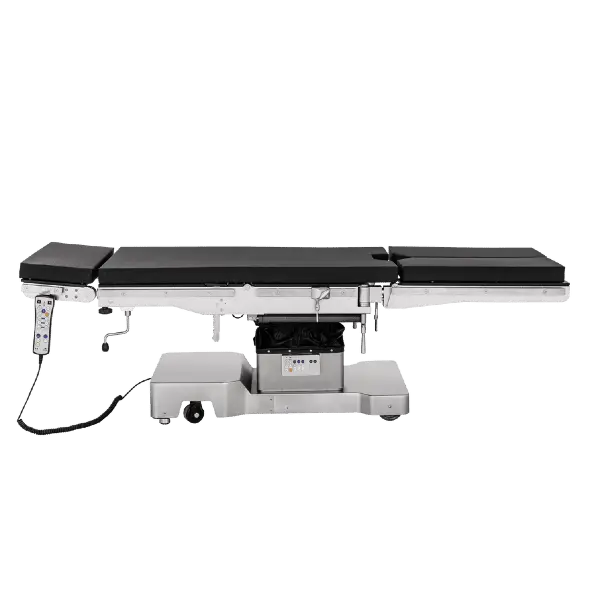

The 09B-CDW is an electric-hydraulic surgical table with a C-arm-compatible tabletop, multi-section articulation, and battery backup, for multi-specialty general operating rooms.
Key Specifications
| Technical Spec | 09B-CDW Details |
|---|---|
| Drive System | Electric-hydraulic |
| Load Capacity | ≤200 kg / 440 lbs |
| Height Range | 700–950 mm |
| Frame Material | #304 stainless steel |
| Controller | Remote handset + column backup |
| Longitudinal Sliding | up to 300 mm |
| Trendelenburg / Reverse | ±25° |
| Lateral Tilt | ±20° |
| Kidney Bridge Height | ≥110 mm |
Features
- Electric-hydraulic drive for smooth lift, tilt, and articulation
- Radiolucent tabletop supporting full-length C-arm scanning
- Longitudinal sliding up to 300 mm for imaging clearance
- Multi-section articulation including Trendelenburg, lateral tilt, and kidney bridge
- Built-in battery backup for position recovery during power loss
- #304 stainless steel frame
- Seamless anti-static high-density memory foam mattress
- One-touch central braking system
Applications
Multi-specialty operating rooms covering general surgery, orthopedics, gynecology, cardiovascular, and neurosurgery from a single platform.
Model Comparison
| Specification | AM-Y09B CDW | AM-Y09B GK (Ortho) | AM-Y09B DHYX (Imaging) | AM-19A ZN |
|---|---|---|---|---|
| Table size | 217×55 cm | 217×55 cm | 240×53 cm | 207×50 cm |
| Height range | 55–105 cm | 68.5–113.5 cm | 70–100 cm | 65–90 cm |
| Lateral tilt | 20°/20° | 20°/20° | 18°/18° | ≥20°±5° |
| Trendelenburg/Reverse | 30°/30° | 30°/30° | 22°/22° | ≥30°±5° |
| Back plate | 90°/40° | 90°/40° | 60°/18° | up ≥80°/down ≥35° |
| Kidney bridge | 12 cm | 12 cm | — | ≥120 mm |
| Longitudinal slide | 30 cm | 35 cm | 26 cm (electric) | ≥360 mm |
| Load capacity | 250 kg | 350 kg | — | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
