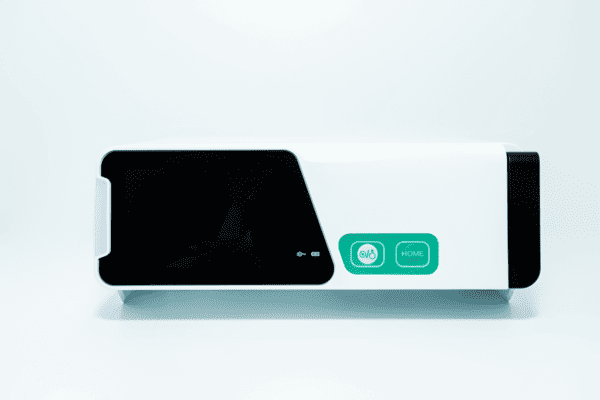

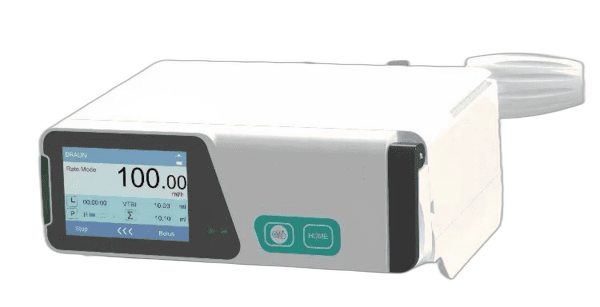

The IPA112 PLUS is a fingertip peristaltic infusion pump with a 3.5-inch touchscreen and thirteen infusion modes, for rate-based, body-weight, drug-library, and TIVA infusion in hospital wards.
Key Specifications
| Parameter | Value |
|---|---|
| LCD | 3.5 inch Touch Screen |
| Infusion Modes | Rate, Rate-Time, Rate Volume, Body Weight, Drug Library, Sequential, Loading Dose, Micro, Ramp Up/Down, Intermittent, Relay, Drip, TIVA (optional) |
| Infusion Principle | Fingertip Peristaltic Pump |
| I.V. Set Compatibility | Open system; qualified PVC/TPE I.V. sets with external diameter 3.8–4.2 mm |
| Range of Flow Rate | 0.01–2200 ml/h |
| Flow Rate Step | 0.01 ml/h |
| Purge/Bolus Rate | 1–2200 ml/h, default 800 ml/h, step 1 ml/h |
| Single Bolus Volume | 0.1–50 ml adjustable, default 3 ml |
| Time Preset | 00:01–99:59 (Hour:Min) |
| Volume Range | 1–9999 ml |
| Drop Range | 1–600 d/min, step 1 drop |
| Accuracy | ±5% |
| Air-in-line Detection | Ultrasonic, upper and under detection |
| Alarms | Air in line, occlusion, door open, VTBI completion, near completion, low battery, battery exhausted, low temperature, motor malfunction, A.C. disconnection, A.C. connection, I.V. set dislocation, MPU error, battery charging, battery charging completion, circuit malfunction |
| KVO | 1–5 ml/h, default 1 ml/h, step 0.1 ml/h |
| Occlusion Pressure | Low 40 kPa ±20 kPa; Middle 60 kPa ±20 kPa; High 100 kPa ±20 kPa; customizable to 8–13 levels |
| Internal Battery | Lithium battery, 10.8V/2200 mAh, more than 4 hours backup |
| Power Supply | 30VA; AC 100–240V, 50/60Hz |
| Classification | Class II, type CF, IPX4 |
| Dimensions / Weight | 22 × 16.6 × 9 cm, 2 kg |
| Optional Functions | Ambulance DC12V, WiFi, language customization |

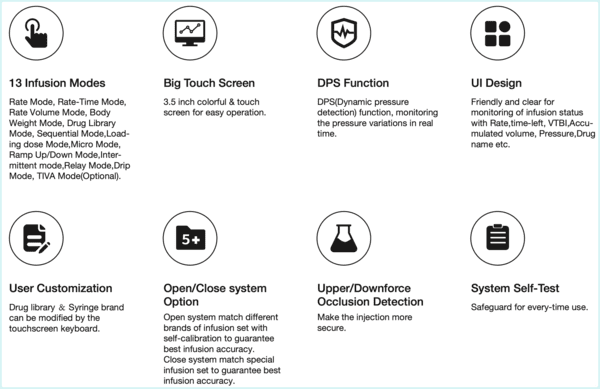

Features
- 3.5-inch touchscreen interface
- Thirteen infusion modes including rate, body weight, drug library, and TIVA (optional)
- Fingertip peristaltic pump mechanism
- Flow rate range of 0.01–2200 ml/h with 0.01 ml/h steps
- ±5% infusion accuracy
- Ultrasonic air-in-line detection with upper and lower sensing
- KVO rate of 1–5 ml/h programmable in 0.1 ml/h steps
- Occlusion pressure settings from 40 kPa to 100 kPa, customizable to 8–13 levels
- Lithium battery backup of more than 4 hours
- Class II, type CF, IPX4 classification
Applications
Hospital wards and infusion therapy settings that require rate, body-weight, drug-library, and TIVA infusion modes.

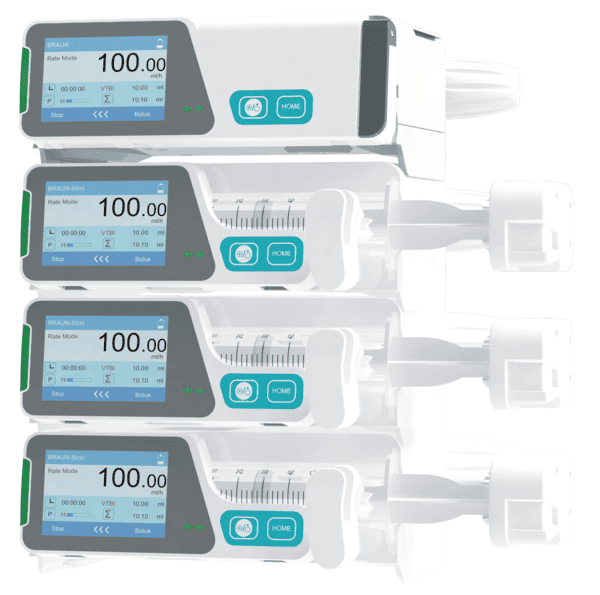

Model Comparison
| Specification | AM-SPA112 PLUS | AM-SPA112 | AM-IPA112 PLUS | AM-IPA112 |
|---|---|---|---|---|
| Type | Syringe pump | Syringe pump | Infusion pump | Infusion pump |
| Display | 3.5″ Touch screen | 3.0″ LCD, numeric keys | 3.5″ Touch screen | 3.0″ LCD, numeric keys |
| Infusion modes | Rate, Rate-Time, Rate-Volume, Body Weight, Drug Library, Sequential, Loading Dose, Micro, Ramp Up/Down, Intermittent, Relay, Drip, TIVA (opt.) | Rate, Rate-Time, Rate-VTBI, Time-VTBI, Body Weight, Drug Library | Rate, Rate-Time, Rate-Volume, Body Weight, Drug Library, Sequential, Loading Dose, Micro, Ramp Up/Down, Intermittent, Relay, Drip, TIVA (opt.) | Rate, Rate-Time, Rate-VTBI, Time-VTBI, Drop, Body Weight, Drug Library |
| Accuracy | ±1.9% | ±2% | ±5% | ±5% |
| Flow rate range | 0.01–2200 ml/h (50 ml syringe) | 0.1–1500 ml/h (50/60 ml syringe) | 0.01–2200 ml/h | 0.1–1500 ml/h |
| Syringe / IV set | 5/10/20/30/50 ml, auto-detect | 5/10/20/30/50/60 ml, auto-detect | Open system, 3.8–4.2 mm IV sets | Open system, 3.8–4.2 mm IV sets |
| Sequential mode | Yes | No | Yes | No |
| Air-in-line detection | — | — | Ultrasonic, upper + lower | Ultrasonic, upper |
| KVO | 0.01–5.0 ml/h | 0.01–10 ml/h | 1–5 ml/h | 0.1–10 ml/h |
| Occlusion pressure | Low/Mid/High: 40/60/100 kPa ±20 | Low/Mid/High: 40/60/100 kPa ±20 | Low/Mid/High: 40/60/100 kPa ±20 | Low/Mid/High: 40/60/100 kPa ±20 |
| Internal battery | Li-ion, ≥15 h | Li-ion, ≥10 h | Li-ion, >8 h | Li-ion, ≥4 h |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
