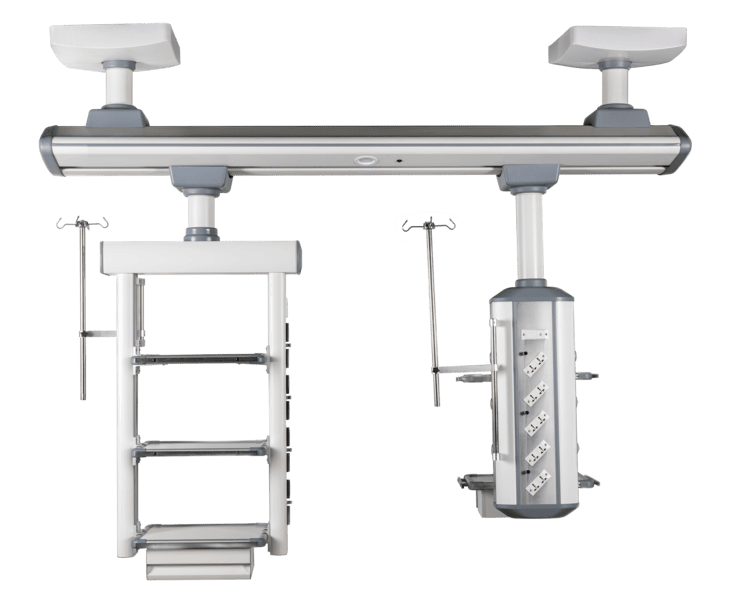

The AM-XY is a medical pendant bridge with twin service heads sliding along a 2700–3300 mm bridge, providing gas, power, and instrument support on both sides of the surgical table.
Key Specifications
| Configuration | Specification |
|---|---|
| Working Voltage | AC220V, 50Hz |
| Bridge Length | 2700–3300 mm (per field measurement) |
| Dry Section Tower | 1 (hanger type); travel 500 mm; rotation 0–340°; load ≥80 kg |
| Wet Section Tower | 1 (davit type); travel 500 mm; rotation 0–340° |
| Gas Terminals | 2 Oxygen + 2 Vacuum per tower (configurable) |
| Power Sockets | 8 × 220V per tower |
| Instrument Platform | 2 height-adjustable layers (optional 550 × 450 mm) |
| Main Material | High-strength aluminum alloy, electrostatic spraying |
Features
- Twin service heads for separate anesthesia and surgical positioning
- Gas terminals with color- and shape-coded anti-misconnection interfaces
- Gas terminals rated for more than 20,000 insertion/removal cycles with secondary seal and three-state control
- Power, grounding, network, and telephone interfaces per tower
- Stainless steel adjustable infusion stands
- Instrument platforms with height-adjustable layers plus drawer and storage basket
- Separation of electrical and gas interfaces for equipment safety
- Optional braking device to prevent drift
Applications
Operating rooms that need ceiling-mounted equipment support for both anesthesia and surgical teams with independent service heads.
Model Comparison
| Specification | AM-XY (ICU Bridge) | AM-X | AM-Y |
|---|---|---|---|
| Rotation angle | 0–340° | 0–340° | 0–340° |
| Gas supply | (2 O2 + 2 suction + 2 air) ×2 | 2 O2 + 2 suction + 2 air | 2 O2 + 2 suction + 2 air |
| Power outlets | 8 + 10 (3-prong) | 10 (3-prong) | 10 (3-prong) |
| Lifting travel | — | 300 mm | 300 mm (electric optional) |
| Equipment trays | 5 | 2 | 2 |
| Infusion rod stand | 1 set ×2 | 1 set | 1 set |
| Drawer | 1 ×2 | 1 | 1 |
| Network/phone interface | 1 set ×2 | 1 set | 1 set |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
