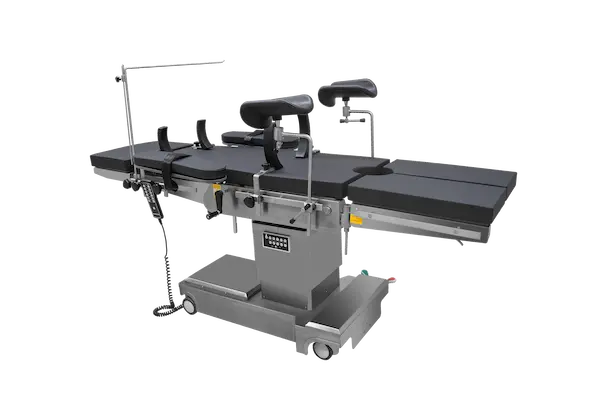

The AM-Y19A-ZN is an electric surgical operating table with dual-motor drive, full-length radiolucent tabletop, and memory positioning, for interventional and minimally invasive procedures.
Key Specifications
| Technical Spec | AM-Y19A-ZN Details |
|---|---|
| Drive System | Dual electric motor |
| Load Capacity | ≤200 kg / 440 lbs |
| Height Range | 700–950 mm |
| Frame Material | Medical-grade #304 stainless steel |
| Power Supply | AC 110-240V, 50/60Hz |
| Battery Backup | Built-in 24V rechargeable battery (50+ full cycles per charge) |
| Hand Controller | Wired remote with memory positions |
| Longitudinal Sliding | up to 300 mm |
| Operating Noise | <45 dB |
Features
- Dual electric motor drive for smooth, low-vibration positioning
- Full-length radiolucent tabletop for C-arm, X-ray, and ultrasound workflows
- Wired remote with memory positioning presets
- Longitudinal sliding up to 300 mm for imaging clearance
- Trendelenburg / reverse 25° and lateral tilt 20°
- Sealed stainless steel base and lifting column
- Anti-static, waterproof, mold-resistant memory mattress
- AC/DC power with built-in 24V rechargeable battery backup
Applications
Interventional, minimally invasive, spine, vascular, orthopedic, and general surgery in facilities requiring imaging-friendly positioning.
Model Comparison
| Specification | AM-Y09B CDW | AM-Y09B GK (Ortho) | AM-Y09B DHYX (Imaging) | AM-19A ZN |
|---|---|---|---|---|
| Table size | 217×55 cm | 217×55 cm | 240×53 cm | 207×50 cm |
| Height range | 55–105 cm | 68.5–113.5 cm | 70–100 cm | 65–90 cm |
| Lateral tilt | 20°/20° | 20°/20° | 18°/18° | ≥20°±5° |
| Trendelenburg/Reverse | 30°/30° | 30°/30° | 22°/22° | ≥30°±5° |
| Back plate | 90°/40° | 90°/40° | 60°/18° | up ≥80°/down ≥35° |
| Kidney bridge | 12 cm | 12 cm | — | ≥120 mm |
| Longitudinal slide | 30 cm | 35 cm | 26 cm (electric) | ≥360 mm |
| Load capacity | 250 kg | 350 kg | — | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
