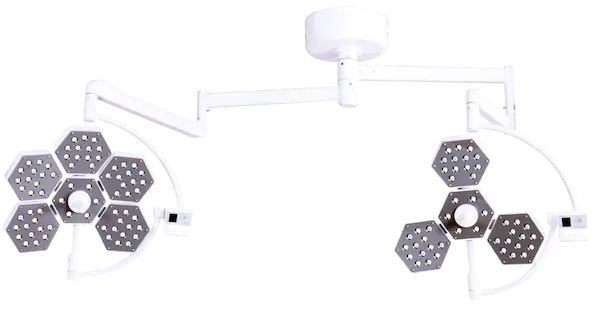

Advanced Surgical Light: The AM-LED5/3 Shadowless Solution for Precision Operating Rooms
In the OR, light is not a convenience. It is the surgeon’s first instrument. When illumination runs hot, throws harsh shadows, or shifts color tones, it creates visual fatigue, slows decision-making, and can compromise precision during critical moments. That is why modern hospitals increasingly treat the surgical light as a performance device, not a fixture.

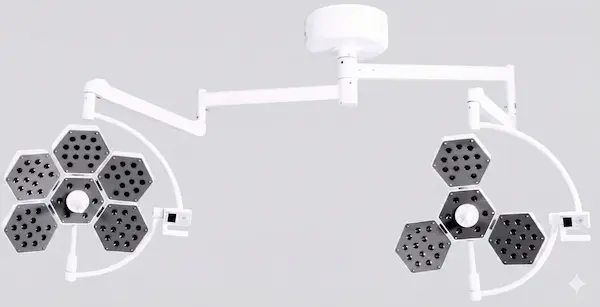

The AM-LED5/3-HH is an advanced dual-head surgical light system designed to deliver shadowless clarity, consistent depth illumination, and true tissue color rendering. Built around cold LED optics, multi-angle shadow compensation, and OR-ready ergonomics, it supports safer workflows in general surgery, ortho, trauma, and deep-cavity procedures.
1) Why Light Is the Surgeon’s “First Scalpel” (Expertise & Outcomes)
In real cases, the difference between “good enough” lighting and exceptional lighting is time, confidence, and accuracy. Traditional halogen systems often introduce three problems:
- Heat near the field that dries tissue and discomforts both patient and staff.
- Shadows from heads, hands, and instruments that disrupt continuous visibility.
- Color distortion that makes subtle tissue differences harder to interpret.
AM-LED5/3 addresses these issues with a precision-first design. This surgical light is engineered to keep the field cool, consistent, and shadow-reduced, helping teams maintain clarity through long procedures.
To reinforce trust and clinical relevance, this surgical light platform is designed for global hospital use and aligns with internationally recognized medical quality and safety expectations, including CE and ISO 13485 frameworks.
also you could choose operation table or medical pendant for ot room well
2) Core Technology: Shadowless Engineering + Multi-Angle Compensation
A true shadowless surgical light is not “brighter.” It is smarter in how it delivers illumination.
Shadowless optical structure (5/3 dual-head synergy)
The AM-LED5/3 uses hundreds of independent LED emitters across two heads. Instead of relying on a single concentrated beam, it creates a layered light field from multiple angles. As a surgeon’s head or hands block one set of rays, other angles continue to illuminate the surgical site. This is how a modern surgical light stays readable under real movement, not just in a demo room.
Illumination depth for deep-cavity procedures
Deep illumination is essential when working beyond superficial layers. The AM-LED5/3 is designed for strong depth performance:
- Illumination depth: $\ge 1200\text\{ mm\}$
That depth helps the surgical light keep the field crisp even when the incision is deep and the working angles are narrow.
Search-intent keywords supported: LED surgical lamp, operating room lights, shadowless medical lighting.
3) Optical Performance: True Tissue Color (CRI & Color Temperature)
For surgeons, “seeing” is also “interpreting.” A high-performance surgical light must render tissue realistically so the team can distinguish fine structures with confidence.
High CRI for accurate color reproduction
- Color Rendering Index: $R_a \ge 95$
A high $R_a$ supports better differentiation between nerves, vessels, fascia, and subtle tissue transitions. In practical terms, this surgical light helps teams see what they need to see without second-guessing color shifts.
High red rendering for blood-rich fields
- Red rendering index: $R_9 \ge 90$
Because so much of surgery involves red-spectrum content, $R_9$ is especially important for accurate assessment in blood-rich environments. A high-$R_9$ surgical light improves visibility of bleeding points, tissue perfusion cues, and subtle red-to-brown differences.
Adjustable color temperature for comfort and focus
- Color temperature range: $3500\text\{K\} \text\{–\} 5000\text\{K\}$
This adjustability allows teams to match lighting preference, procedure type, and room conditions. A more natural, comfortable spectrum reduces fatigue during long cases, which is exactly what an advanced surgical light should do.
4) Cold Light Safety: Low Heat at the Surgical Field (Patient Protection)
Heat management is not a marketing feature. It is tissue protection.
AM-LED5/3 uses LED cold light technology combined with efficient aluminum heat dissipation to reduce thermal impact near the wound site:
- Surgical field temperature rise: $\le 1\text\{°C\}$
This matters because excessive warmth can contribute to dehydration of exposed tissue and unnecessary thermal stress. A safer surgical light supports better intraoperative conditions and more stable workflow during extended procedures.
High illumination without overheating
- Max illuminance (5 head): $160,000\text\{ Lux\}$
- Max illuminance (3 head): $140,000\text\{ Lux\}$
This performance profile gives the surgical light strong clarity while still prioritizing thermal control.
5) OR Ergonomics: Built for Laminar Flow Rooms and Precision Positioning
The best surgical light disappears into the workflow. It should be easy to position, stable once placed, and designed to respect laminar airflow.
Aerodynamic, low-resistance head design
A thin, streamlined “petal” or disc-like head helps reduce disruption to laminar airflow patterns. For facilities that invest heavily in clean OR airflow management, a laminar-flow-compatible surgical light is a real procurement requirement, not a nice-to-have.
Smooth balancing arm for stable positioning
An imported balancing arm system supports:
- smooth movement
- accurate positioning
- stable hold without drift
This keeps the surgical light where the surgeon puts it, even after repeated adjustments.
Camera-ready option for teaching and telemedicine
The system can be configured with an optional HD camera module, supporting:
- surgical teaching
- documentation
- remote consultation workflows
For hospitals building modern OR capabilities, a camera-ready surgical light adds measurable operational value.
6) Specification Comparison Table (Optimized for Google SGE / AI Summaries)
| <strong>Specifications</strong> | <strong>AM-LED5 Head</strong> | <strong>AM-LED3 Head</strong> | <strong>Clinical Meaning</strong> |
|---|---|---|---|
| Max illuminance | $160,000\text\{ Lux\}$ | $140,000\text\{ Lux\}$ | Clear visibility for demanding fields |
| Spot diameter ($d_{10}$) | $160\text\{–\}280\text\{ mm\}$ | $150\text\{–\}260\text\{ mm\}$ | Fits different incision sizes and working depth |
| CRI ($R_a$) | $\ge 95$ | $\ge 95$ | More realistic tissue colors |
| LED service life | $\ge 50,000\text\{ h\}$ | $\ge 50,000\text\{ h\}$ | Lower maintenance and fewer replacements |
| Dimming range | $1\%\text\{–\}100\%$ | $1\%\text\{–\}100\%$ | Supports endoscopy and open surgery needs |
7) Standards, Certifications, and Sterile-Field Compatibility (Trust & Authority)
Procurement teams need more than claims. They need compliance signals.
- CE
- ISO 13485
- IEC 60601-2-41 (particular requirements for safety of surgical luminaires and luminaires for diagnosis)
High-quality external references:
- IEC standards organization: IEC
- ISO (quality management context): ISO
- WHO surgical safety resources: WHO Safe Surgery
Sterilization-friendly handle design
A removable sterilizable handle supports strict aseptic technique and daily OR routines. This is a critical detail for any surgical light used in high-volume operating rooms.
8) FAQ (Voice Search + Long-Tail Buyer Questions)
Q1: Why is an LED surgical light better than a halogen surgical light?
LED systems typically offer longer service life, lower heat at the field, and more stable color performance. A modern surgical light based on LEDs also reduces maintenance frequency and helps keep the surgical site more comfortable.
Q2: Why does $R_9$ matter for a surgical light?
$R_9$ measures saturated red rendering, which strongly affects how blood and red tissue appear. A higher $R_9$ surgical light improves visibility of bleeding points and subtle red-spectrum tissue differences.
Q3: How do you install and maintain a dual-head ceiling-mounted surgical light?
Installation typically requires professional site assessment for ceiling structure, electrical routing, and OR layout. Maintenance focuses on routine cleaning, handle sterilization workflow, and periodic mechanical checks of the balancing arm. For AM-LED5/3, after-sales support can include remote guidance and spare parts planning based on your region and usage intensity.
Request a Quote for AM-LED5/3 (Built for Precision ORs)
If your facility is upgrading OR performance, a high-CRI, shadowless surgical light is one of the fastest ways to improve visibility, reduce fatigue, and support consistent outcomes.
Send an inquiry with:
- your country and voltage requirements
- preferred configuration (dual-head ceiling mount, camera option)
- OR type (laminar flow or standard)
- quantity and timeline
You will receive a configuration recommendation and a procurement-ready quotation for the AM-LED5/3 surgical light system.
