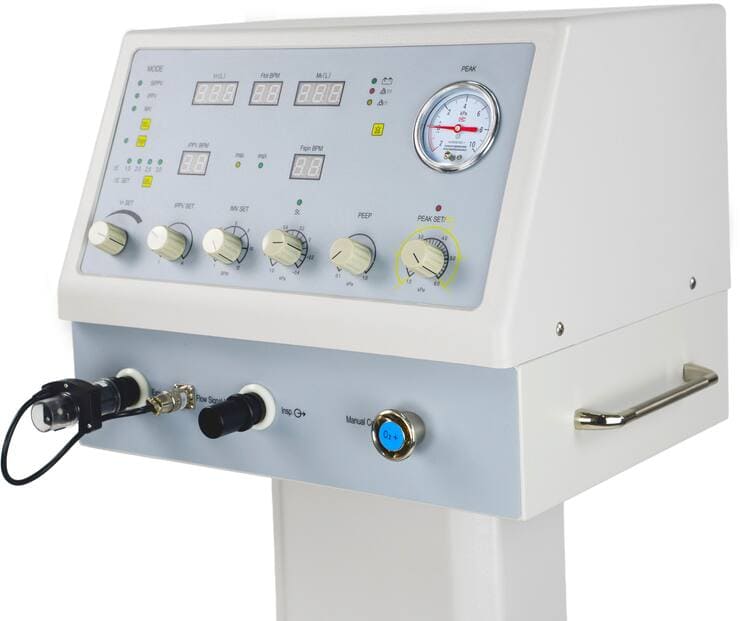

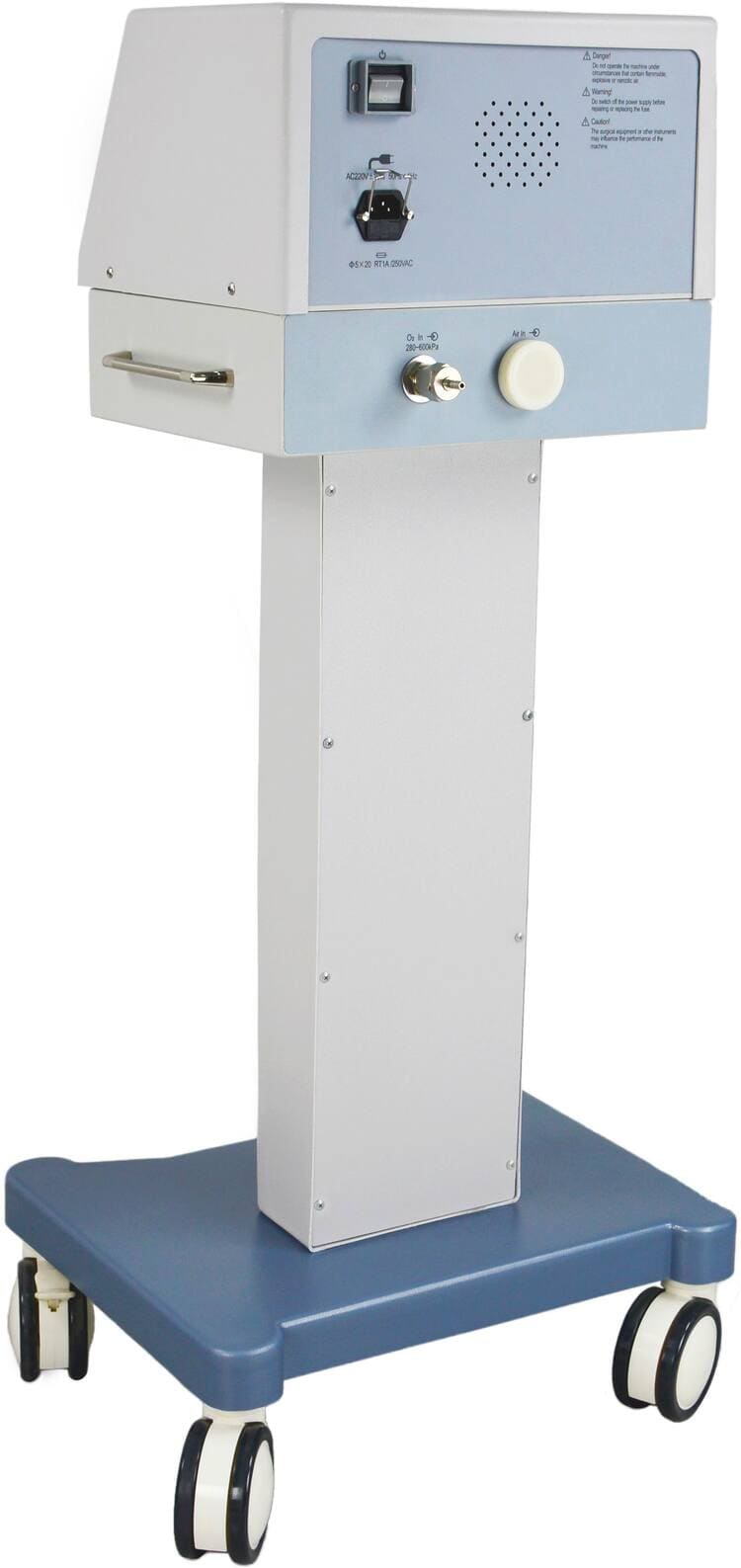

The AM-PA500 is an entry-level ICU ventilator with six ventilation modes and a compact design, for recovery rooms, step-down units, small hospitals, and ambulance transport.
Key Specifications
| Parameter | Value |
|---|---|
| Ventilation Modes | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Tidal Volume | 50–1200 ml |
| Respiration Rate | 6–60 bpm |
| I/E Ratio | 1:1.5–1:3.0 |
| Display | LED |
| Backup Battery | ≥4 hours |
Features
- Six ventilation modes: A/C, IPPV, SIPPV, IMV, SIMV, and MANUAL
- Tidal volume from 50 to 1200 ml for neonates through large adults
- Respiration rate from 6 to 60 bpm
- I/E ratio from 1:1.5 to 1:3.0
- Compact design suitable for transport carts and recovery bays
- LED display of tidal volume, minute ventilation, frequency, airway pressure, and I/E ratio
- Built-in humidifier with temperature adjustment
- Backup battery of at least four hours
Applications
Recovery rooms, step-down units, small hospitals, ambulance transport, and clinics requiring reliable ventilation without advanced modes.
Model Comparison
| Specification | AM-PA-900B | AM-PA-700B | AM-PA-500 |
|---|---|---|---|
| Breathing modes | SIPPV(VCV), IPPV(VCV), PCV, PSV, SIMV, PSIMV, CPAP, MANUAL | A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT, MANUAL | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Tidal volume | 20–1500 ml | 50–1500 ml | 50–1200 ml |
| I/E ratio | 4:1–1:4 | 4:1–1:4 | 1:1.5–1:3.0 |
| Respiratory rate | 1–99 bpm | 1–99 bpm | 6–60 bpm |
| IMV frequency | 1–20 bpm | 1–20 bpm | 1–12 /min |
| O2 concentration | 21%–100% | 21%–100% | — |
| PEEP | 0–1.0 kPa | 0–1.0 kPa | 0.1–1.0 kPa |
| Pressure limit | 1.0–6.0 kPa | 1.0–6.0 kPa | 1.0–6.0 kPa |
| Trigger method | Pressure + Volume trigger | Pressure trigger | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
