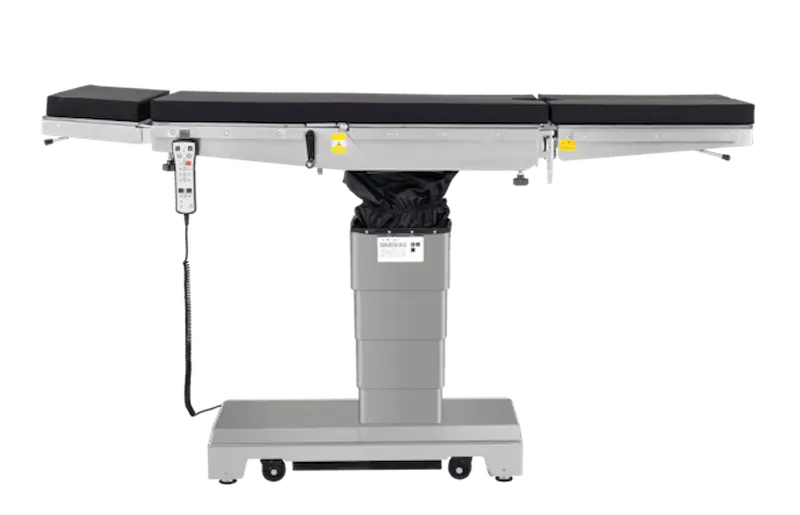

The 09B-GK is an electric-hydraulic orthopedic surgical table with a carbon fiber tabletop, integrated traction system, and ≥250 kg load capacity, for trauma, spine, and orthopedic procedures.
Key Specifications
| Feature | Specifications (09B-GK) |
|---|---|
| Table Length / Width | 2100 mm / 550 mm |
| Height Adjustment | 700–1000 mm (Electric-Hydraulic) |
| Longitudinal Slide | ≥300 mm |
| Max Load Capacity | ≥250 kg (Heavy-duty) |
| Trendelenburg / Reverse | ≥25° / ≥20° |
| Lateral Tilt (L/R) | ≥20° / ≥20° |
| Material | Carbon Fiber & 304 Stainless Steel |
Features
- Integrated traction system for femoral and tibial procedures
- High-strength carbon fiber tabletop for low X-ray absorption

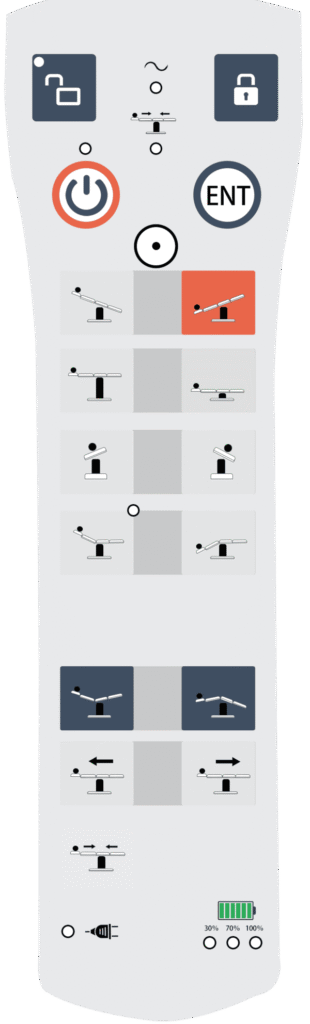

- Electric-hydraulic drive for smooth height, Trendelenburg, and lateral tilt adjustment
- Longitudinal slide of 300 mm or more for head-to-foot C-arm scanning
- Split leg section that is removable and abductable
- Built-in kidney bridge for spinal positioning support
- 304 stainless steel base and column cover
Model Comparison
| Specification | AM-Y09B CDW | AM-Y09B GK (Ortho) | AM-Y09B DHYX (Imaging) | AM-19A ZN |
|---|---|---|---|---|
| Table size | 217×55 cm | 217×55 cm | 240×53 cm | 207×50 cm |
| Height range | 55–105 cm | 68.5–113.5 cm | 70–100 cm | 65–90 cm |
| Lateral tilt | 20°/20° | 20°/20° | 18°/18° | ≥20°±5° |
| Trendelenburg/Reverse | 30°/30° | 30°/30° | 22°/22° | ≥30°±5° |
| Back plate | 90°/40° | 90°/40° | 60°/18° | up ≥80°/down ≥35° |
| Kidney bridge | 12 cm | 12 cm | — | ≥120 mm |
| Longitudinal slide | 30 cm | 35 cm | 26 cm (electric) | ≥360 mm |
| Load capacity | 250 kg | 350 kg | — | — |
Applications
Trauma centers, fracture reduction, spinal surgery, and high-demand orthopedic rooms that rely on C-arm imaging and traction accuracy.
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
