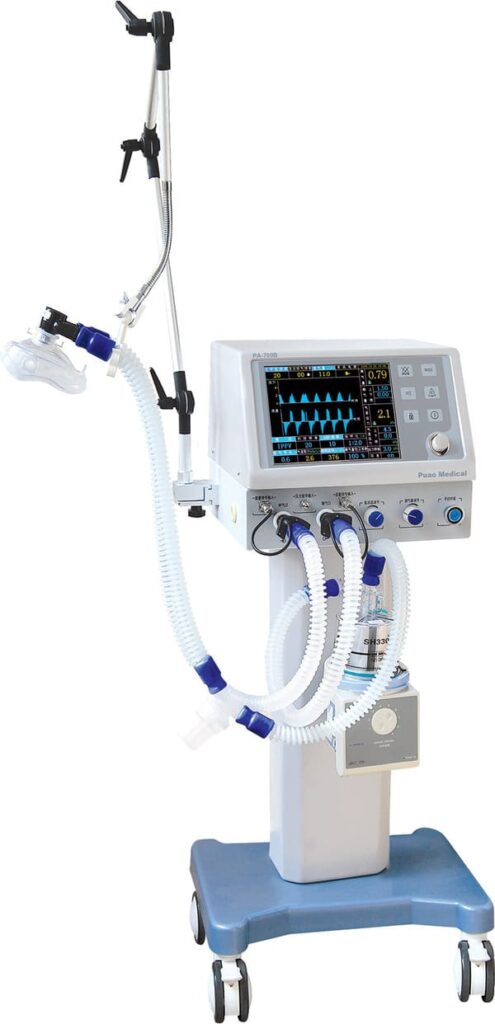

The AM-PA-700B is a standard-model ICU ventilator with nine ventilation modes, a 10.4-inch TFT display, and a four-hour backup battery, for general medical-surgical ICUs.
Key Specifications
| Parameter | Value |
|---|---|
| Ventilation Modes | A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT, MANUAL |
| Tidal Volume | 50–1500 ml |
| Respiration Rate | 1–99 bpm |
| I/E Ratio | 4:1–1:4 |
| Display | 10.4-inch TFT color |
| Backup Battery | 4 hours |
Features
- Nine ventilation modes including PEEP, SIGH, and pressure support
- Tidal volume from 50 to 1500 ml
- Respiration rate from 1 to 99 bpm
- I/E ratio from 4:1 to 1:4

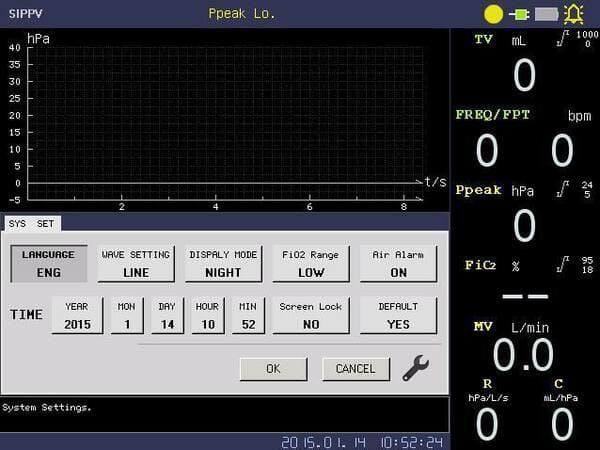

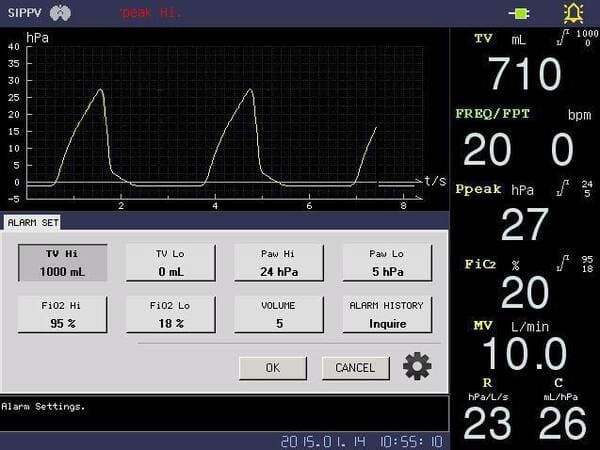

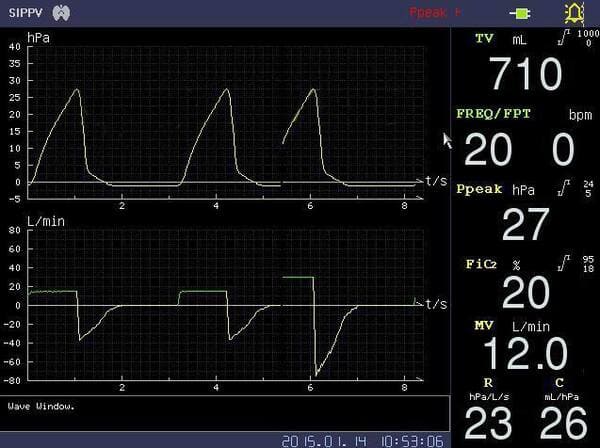

- 10.4-inch TFT color display with real-time waveforms
- Built-in humidifier with temperature control
- Four-hour backup battery
- Pressure trigger and pressure control for weaning trials
Applications
General medical-surgical ICUs requiring everyday ventilation capability with occasional complex cases, without advanced waveform analysis.
Model Comparison
| Specification | AM-PA-900B | AM-PA-700B | AM-PA-500 |
|---|---|---|---|
| Breathing modes | SIPPV(VCV), IPPV(VCV), PCV, PSV, SIMV, PSIMV, CPAP, MANUAL | A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT, MANUAL | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Tidal volume | 20–1500 ml | 50–1500 ml | 50–1200 ml |
| I/E ratio | 4:1–1:4 | 4:1–1:4 | 1:1.5–1:3.0 |
| Respiratory rate | 1–99 bpm | 1–99 bpm | 6–60 bpm |
| IMV frequency | 1–20 bpm | 1–20 bpm | 1–12 /min |
| O2 concentration | 21%–100% | 21%–100% | — |
| PEEP | 0–1.0 kPa | 0–1.0 kPa | 0.1–1.0 kPa |
| Pressure limit | 1.0–6.0 kPa | 1.0–6.0 kPa | 1.0–6.0 kPa |
| Trigger method | Pressure + Volume trigger | Pressure trigger | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
