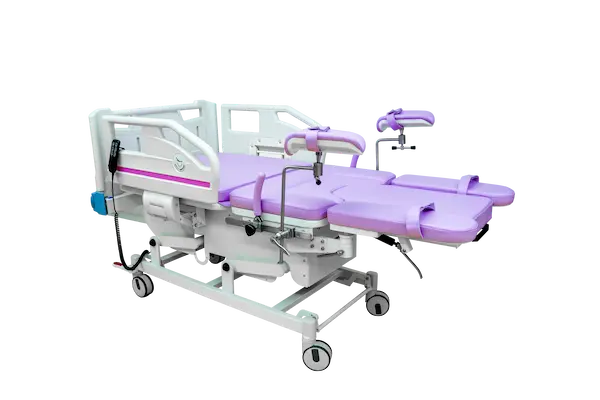

The AM-CBYT is an electric gynecological table with motorized height, backrest, and Trendelenburg positioning, for OB/GYN examinations, colposcopy, and minor gynecological procedures.
Key Specifications
| Feature | AM-CBYT Technical Specification |
|---|---|
| Drive System | High-performance electric linear actuators |
| Table Length / Width | 1850 mm × 600 mm (approx.) |
| Backrest Adjustment | 0°–75° (electric) |
| Trendelenburg / Reverse | ≥15° / ≥10° |
| Load Capacity | ≤180 kg / 400 lbs |
| Base Material | ABS engineering plastic or stainless steel |
Features
- Motorized height, backrest, and Trendelenburg positioning controlled from a foot pedal
- Padded lithotomy supports with independent adjustment
- Low entry height around 550 mm for easier patient access
- Seamless medical-grade PVC/PU upholstery for easier wipe-down
- Multi-section articulation with independent backrest, seat, and leg support adjustment
- Optional removable stainless steel basin for fluid management
- Hand or foot control options with emergency stop or locking functions available per configuration
Applications
OB/GYN clinics and procedure rooms for pelvic exams, colposcopy, LEEP, and minor gynecological procedures, with adaptability to certain urological exams.
Model Comparison
| Specification | AM-KDC-Y CBYT | AM-KDC-Y CLK | AM-KDC-Y JJK | AM-KDC-Y DGN |
|---|---|---|---|---|
| Type | Electric delivery bed | Electric delivery table | Hydraulic delivery table | Electric exam table |
| Table size | 192×92 cm | 185×60 cm | 185×60 cm | 185×60 cm |
| Height range | 65–90 cm | 74–100 cm | 74–100 cm | 74–100 cm |
| Longitudinal slide | 25 cm | — | — | — |
| Trendelenburg/Reverse | 5°/5° | 10°/25° | 15°/25° | 15°/25° |
| Back plate (up/down) | 65° (up) | 75°/10° | 75°/10° | 75°/10° |
| Foot plate (up/down) | 55°/5° | — | — | — |
| Load capacity | 200 kg | — | — | — |
| Power | — | AC220V, 50Hz | AC220V, 50Hz | AC220V, 50Hz |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
