Overview

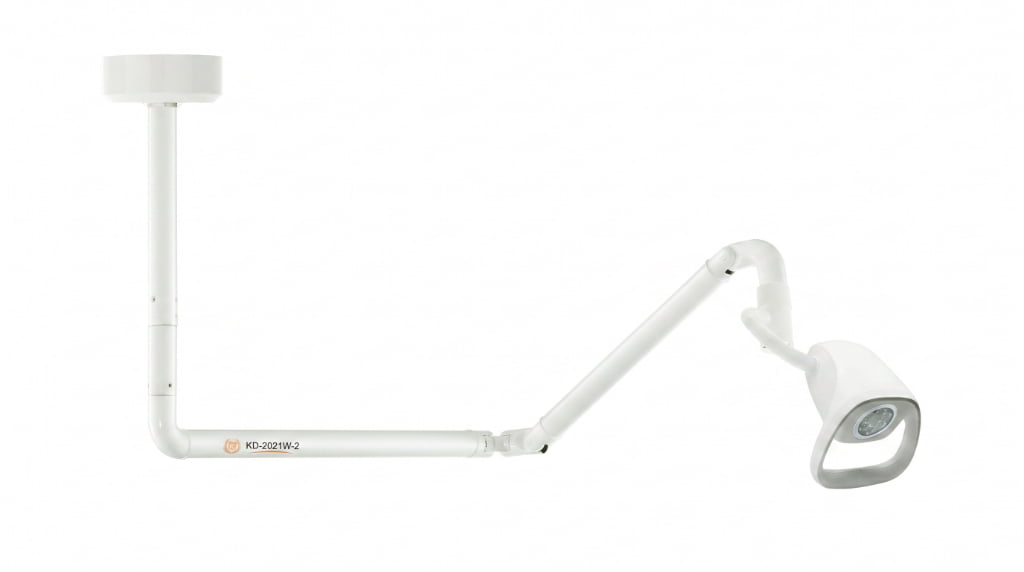

The KD-2021W-2 is a ceiling-mounted 21W LED examination light designed for fixed installation in consultation rooms, dental operatories, and procedure areas. With seven 3W LEDs delivering 17,000 Lux at 400 mm, it offers high brightness with linear dimming, a 360° rotating central column, and a precision articulated arm that holds position without drift.
Key Specifications
| Parameter | Value |
|---|---|
| Light Source | LED 21W (7 × 3W) |
| Power Supply | AC 100–240V, 50/60Hz |
| Color Temperature | 4,000–5,000K |
| Illuminance | ≥17,000 Lux (at 400 mm) |
| Working Distance | 400 mm |
| Mounting Type | Ceiling-mounted |
| Rotation | 360° central column |
| Gross Weight | 10.5 kg |
| Packaging Dimensions | 980 × 440 × 170 mm |
Design Features
- Seven 3W LEDs — high brightness with correct color temperature
- Linear brightness adjustment
- Large ergonomic positioning handle
- Articulated arm: vertical/horizontal adjustment with precision lock — no drift
- Central column rotates 360° for full room coverage
- Ceiling-mounted — saves floor space in compact examination rooms
Clinical Applications
- Outpatient consultation rooms
- Dental operatories
- ENT examination rooms
- Aesthetic procedure rooms
- Veterinary examination rooms
Frequently Asked Questions
What ceiling height is required for installation?
The KD-2021W-2 is designed for standard ceiling heights. The central column length can be customized for higher ceilings. Contact us with your ceiling height measurement for the appropriate configuration.
Does the arm hold position reliably over time?
Yes. The articulated arm uses precision locking mechanisms tested for position retention without drift, even after repeated adjustment. The 360° central column rotation is smooth and locks securely at any angle.
What documents are available for import?
Conformity documentation is confirmed by model, legal manufacturer, and destination market. Registration requirements vary by country. Contact us with your destination country for the applicable documentation package.
