Overview

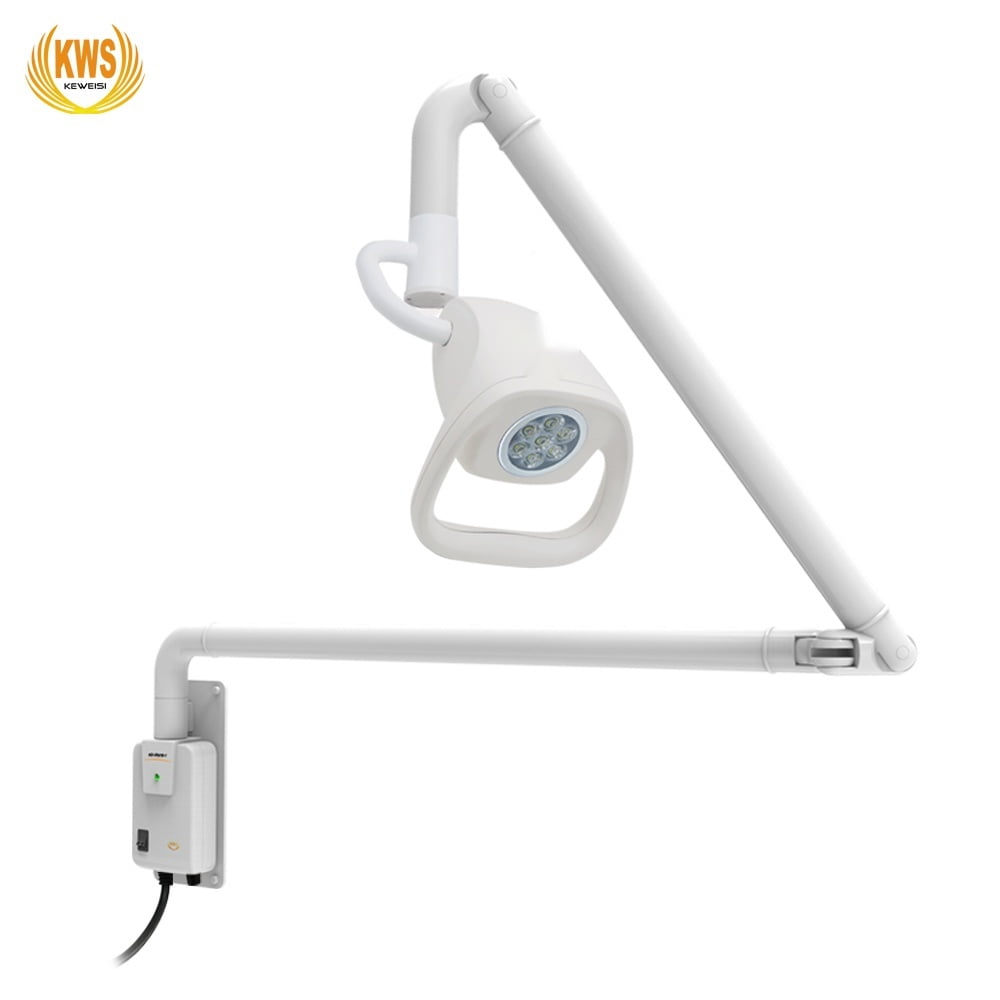

The KD-2021W-3 is a wall-mounted 21W LED examination light delivering up to 20,000 Lux at 400 mm working distance. With seven 3W LEDs, linear brightness adjustment, and a precision articulated arm, it is designed for fixed installation in consultation rooms where floor space is at a premium.
Key Specifications
| Parameter | Value |
|---|---|
| Light Source | LED 21W (7 × 3W) |
| Power Supply | AC 100–240V, 50/60Hz |
| Color Temperature | 4,000–5,000K |
| Illuminance | ≥20,000 Lux (at 400 mm) |
| Working Distance | 400 mm |
| Mounting Type | Wall-mounted |
| Gross Weight | 8.2 kg |
| Packaging Dimensions | 980 × 440 × 170 mm |
Design Features
- Seven 3W LEDs — high brightness, correct color temperature
- Linear brightness adjustment
- Large ergonomic positioning handle for easy one-hand operation
- Articulated arm: lamp head and arm rotate freely with precision lock — no drift
- Multi-angle illumination coverage
- Wall-mounted — ideal for rooms with limited floor space
Clinical Applications
- Outpatient consultation rooms
- Dental operatories
- ENT examination rooms
- Aesthetic procedure rooms
- Veterinary examination rooms
Frequently Asked Questions
What wall structure is required for installation?
The KD-2021W-3 wall bracket requires a solid mounting surface — concrete, brick (240 mm minimum), or steel-framed walls. The installation template and mounting hardware are included. Contact us for structural requirements specific to your facility.
Can the arm be repositioned during a procedure without tools?
Yes. The articulated arm and lamp head can be repositioned by hand using the large ergonomic handle. The locking mechanism holds position reliably without drift while allowing tool-free adjustment during examinations.
What documents are available for import?
Conformity documentation is confirmed by model, legal manufacturer, and destination market. Registration requirements vary by country. Contact us with your destination country for the applicable documentation package.
