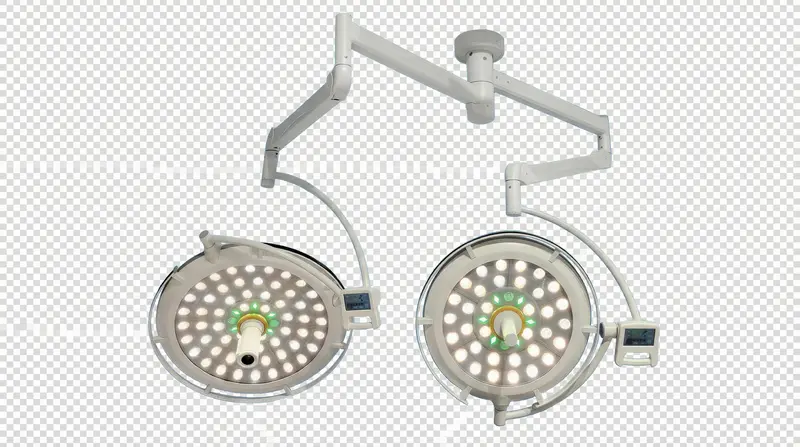

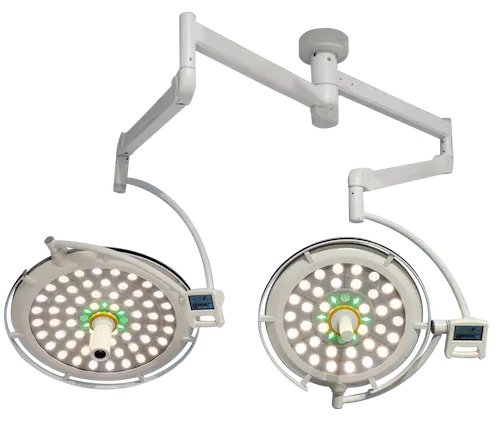

The AM-LED700/500-ZN is a dual-head ceiling-mounted surgical light system built for general surgery, ambulatory surgery centers, and mixed-specialty operating rooms. The 700 mm + 500 mm configuration provides shadowless, high-CRI illumination with adjustable color temperature and an optional endoscopy mode.
Key Specifications
| Specification | AM-LED700 | AM-LED500 |
|---|---|---|
| Max Illumination (Lux) | 160,000 | 140,000 |
| Color Temperature (K) | 3500–5000 (Adjustable) | 3500–5000 (Adjustable) |
| Light Field Diameter (mm) | 120–300 | 120–300 |
| LED Lifespan (h) | > 50,000 | > 50,000 |
| CRI (Ra) | ≥ 95 | ≥ 95 |
| Power Supply | AC 100-240V, 50/60Hz | |
| Power Consumption | 120W | 80W |
| Shadow Management | Multi-LED array, <1% residual shadow | |
| IP Rating | IPX4 | |
| Net Weight | ~15 kg (head) | ~11 kg (head) |
Features
- Dual-head configuration (700 mm + 500 mm) for wide coverage and flexible angle blending
- Multi-lens optical architecture with <1% residual shadow
- CRI (Ra) ≥ 95 with high R9 for accurate red rendering in deep cavities
- Adjustable color temperature from 3500 K to 5000 K
- 360° balanced suspension with spring-arm positioning
- Laminar-flow-friendly petal-style head design
- Touchscreen control for repeatable illuminance adjustment
- Endoscopy (MIS) mode with low-level background illumination
- Aluminum alloy head with passive heat dissipation; LED lifespan > 50,000 hours
- Optional HD camera integration for teaching, documentation, or telemedicine
Applications
Suitable for general surgery, ambulatory surgery centers, gynecology, and other high-volume operating environments that require stable shadowless illumination over long procedures.
Model Comparison
| Specification | AM-LED700/700 DX | AM-LED700/500 ZN | AM-LED5/3 | AM-LED200 |
|---|---|---|---|---|
| Illuminance (Lux) | 40,000–180,000 | 40,000–160,000 (LED700) 30,000–140,000 (LED500) |
40,000–180,000 (LED5) 30,000–160,000 (LED3) |
20,000 (at 1 m) |
| Lamp Source | 73 × German OSRAM | German OSRAM | 71/45 × German OSRAM | 7 W × 7 |
| Bulb Life (h) | >60,000 | >50,000 | >50,000 | ≥50,000 |
| Color Temperature (K) | 3,500–5,500 | 3,700–5,000 | 4,000–6,000 | 4,700 |
| Color Rendering Index (Ra) | >98 | 85–98 | 85–98 | — |
| Light Beam Depth | 160 cm | 130 cm | 130 cm | — |
| Spot Diameter | 20–26 cm | 16–28 cm | 16–28 cm | 8 cm |
| Light Adjustment Range | 10%–100% | 10%–100% | 1%–100% | — |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
