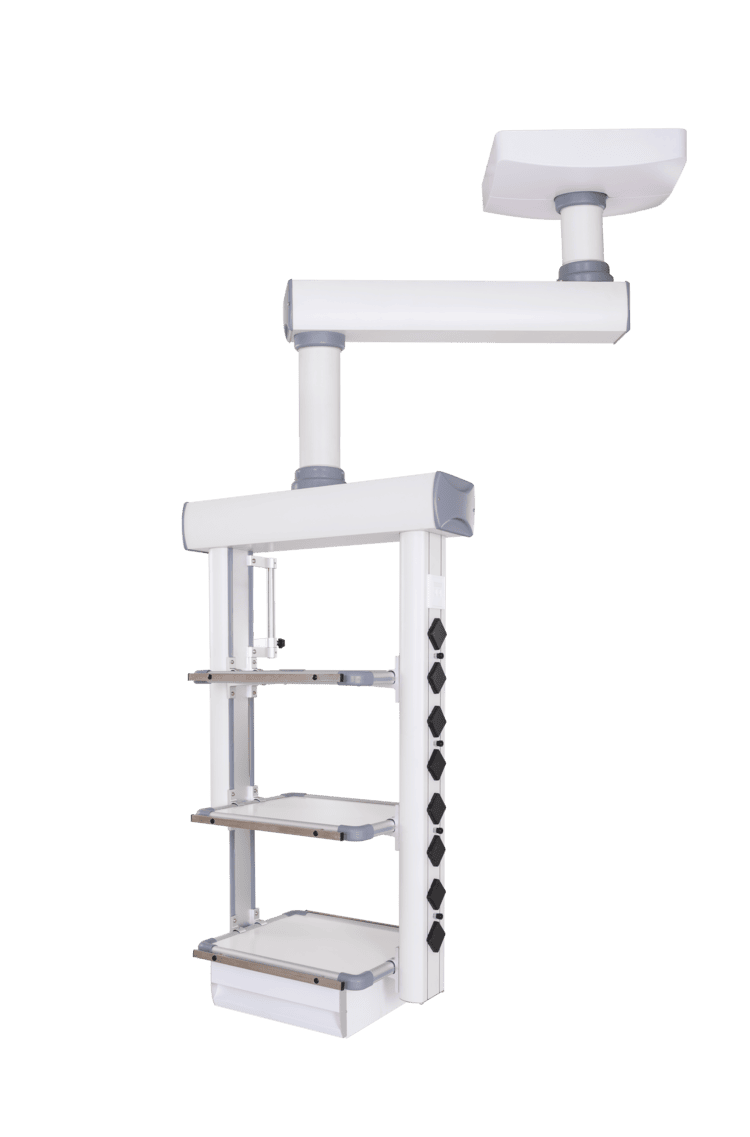

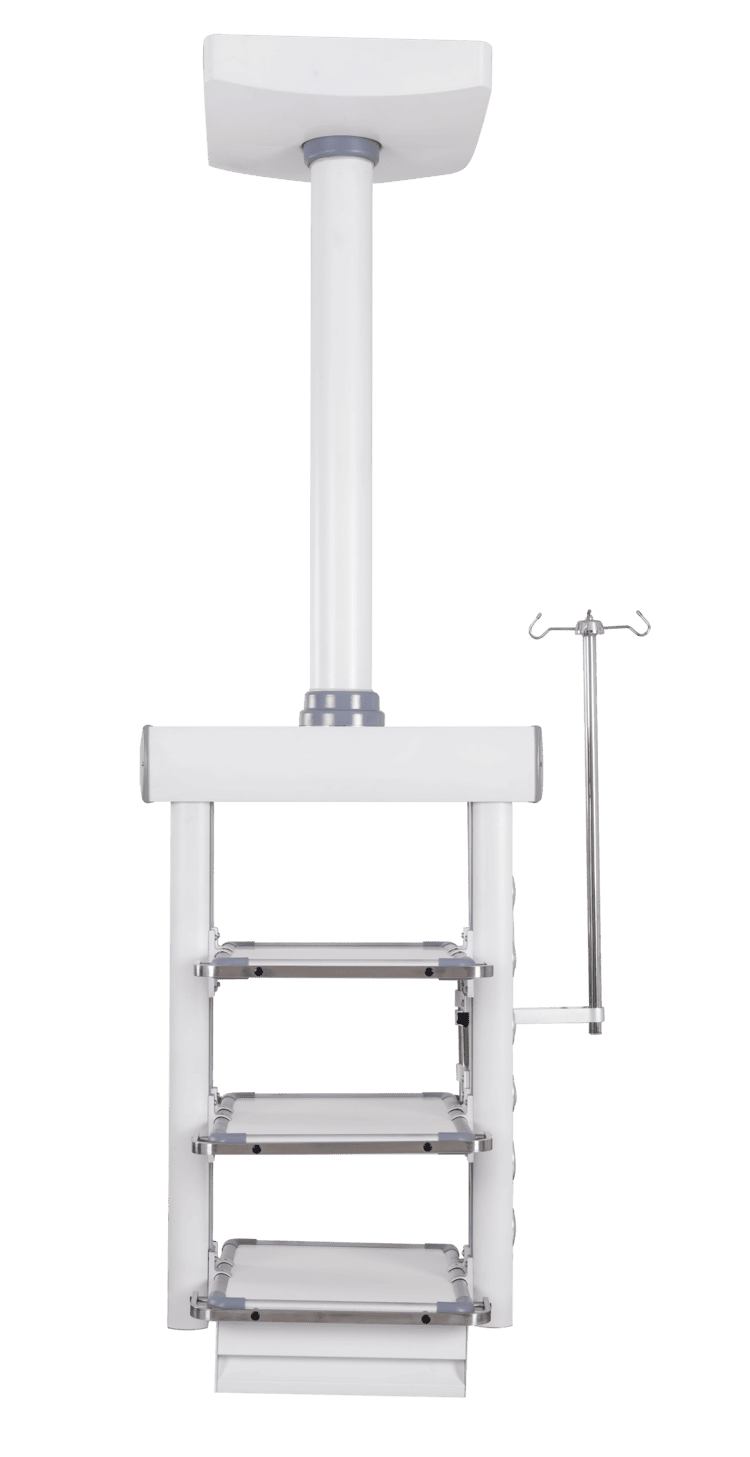

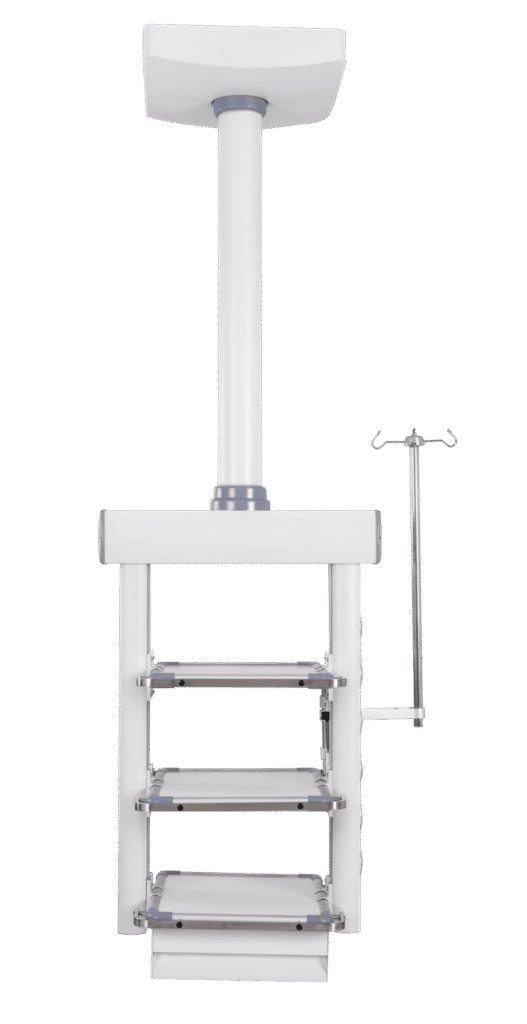

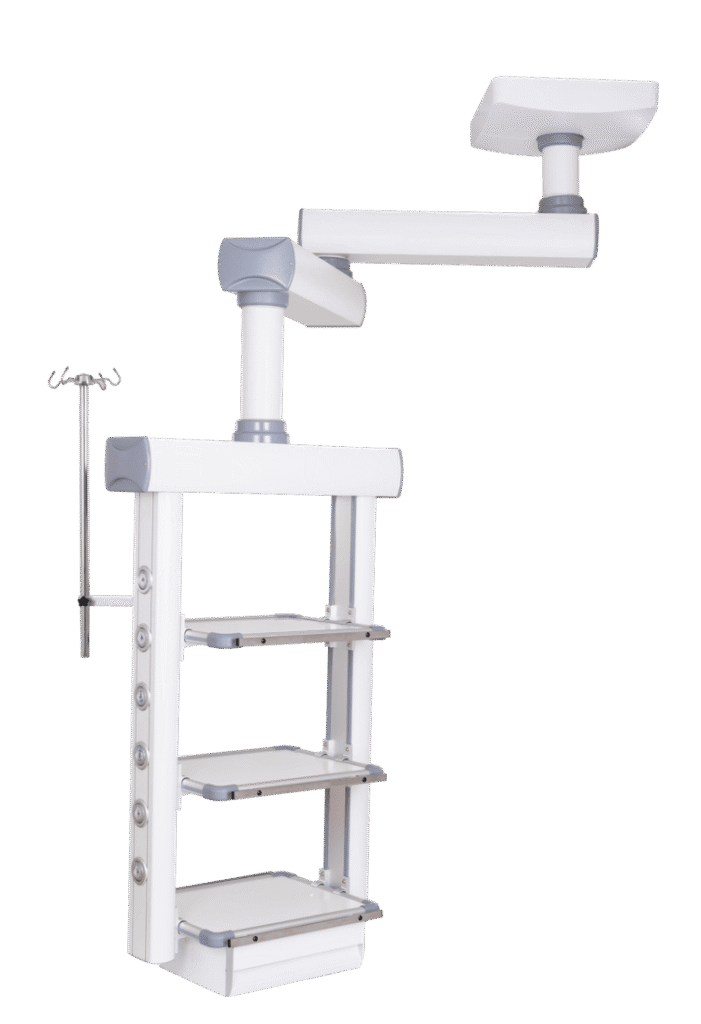

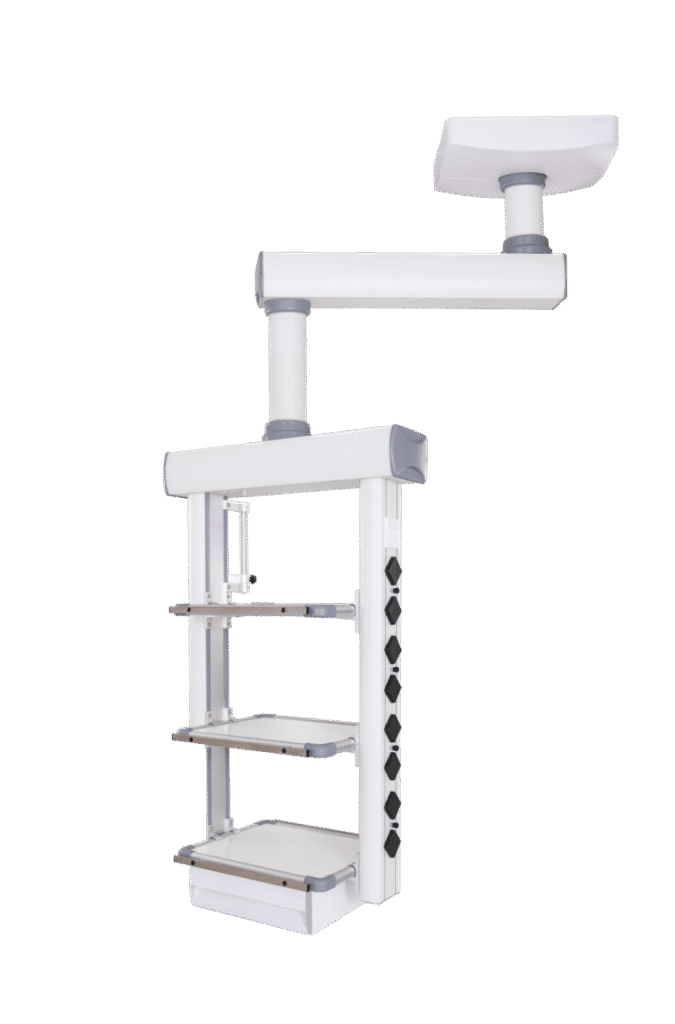

The AM-Y is a ceiling-mounted dual-arm medical pendant with 340° rotation and 80 kg per-arm load capacity, for surgical, endoscopy, and anesthesia settings.
Key Specifications
| Parameter | Value |
|---|---|
| Arm Reach | Primary 700–1100 mm; secondary 400–600 mm |
| Rotation | 340° (independent or simultaneous) |
| Load Capacity | 80 kg per arm |
| Instrument Platform | 3 height-adjustable layers (400–550 mm spacing) |
| Power Input | 220V, 50Hz |
Features
- Ceiling-mounted column with two transverse articulated arms
- Primary and secondary arms rotating independently or simultaneously across 340°
- 80 kg net load capacity per arm
- Three height-adjustable instrument platform layers plus an integrated drawer
- Rounded anti-collision platform edges
- Configurable gas interfaces including oxygen, air, nitrous oxide, and vacuum with quick-connect fittings
- Integrated power outlets configurable to regional voltage standards
Applications
Surgical ORs for anesthesia and instrument suspension, endoscopy suites for processor and monitor positioning, and anesthesia induction areas.
Model Comparison
| Specification | AM-XY (ICU Bridge) | AM-X | AM-Y |
|---|---|---|---|
| Rotation angle | 0–340° | 0–340° | 0–340° |
| Gas supply | (2 O2 + 2 suction + 2 air) ×2 | 2 O2 + 2 suction + 2 air | 2 O2 + 2 suction + 2 air |
| Power outlets | 8 + 10 (3-prong) | 10 (3-prong) | 10 (3-prong) |
| Lifting travel | — | 300 mm | 300 mm (electric optional) |
| Equipment trays | 5 | 2 | 2 |
| Infusion rod stand | 1 set ×2 | 1 set | 1 set |
| Drawer | 1 ×2 | 1 | 1 |
| Network/phone interface | 1 set ×2 | 1 set | 1 set |
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
