A resident is scrubbed in, but the attending can’t stand close enough to see the critical dissection plane. The visiting surgeon from three time zones away wants to observe without flying in. These aren’t edge cases anymore — they’re daily workflow in a teaching hospital. The question isn’t whether you need recording capability in your OR. It’s whether the system you install today will actually get used, or just collect dust on a cart in the corner.

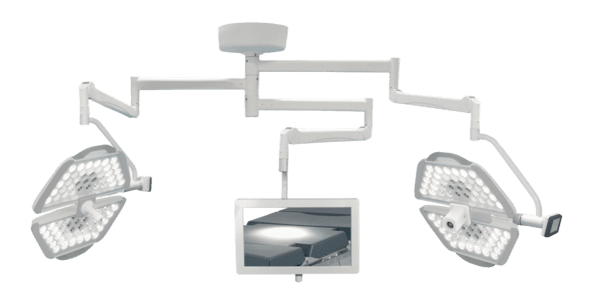

The AM-Panalex-A is our answer to that question. It’s a ceiling-mounted LED surgical light with a fully integrated 4K UHD camera, medical-grade monitor, and 1TB DVR recorder — not three separate devices we bolted together, but a single system designed from the ground up to make recording and streaming as natural as turning on the light.
The camera sits at the center of the light head, aligned with the optical axis. That sounds obvious, but you’d be surprised how many integrated systems offset the camera — which means the recorded image doesn’t match what the surgeon sees. Ours does. The 4K sensor captures tissue color and texture with enough fidelity that a pathologist reviewing the footage can actually read the surgical field, not guess at it. The DVR stores roughly 200 hours of 4K footage locally, and the system supports real-time streaming over hospital networks for remote consultation or grand rounds.
What really sets this apart from a light-plus-camera-on-a-stick setup is the control integration. One 4.3-inch touch panel handles everything — light intensity, color temperature, camera zoom, recording start/stop, and streaming destination. You don’t need a second person running the AV equipment. The surgeon or circulating nurse controls it with a few taps, and the system remembers your last settings so you don’t start every case from scratch.
The light itself is no afterthought. We spec’d LED arrays with a color rendering index above 95 and adjustable color temperature from 3,800K to 5,000K — because recording tissue under a light that washes out reds defeats the purpose of 4K resolution. The shadowless performance holds up through the full range of arm articulation, with 360-degree rotation and a handle that comes off for autoclave sterilization between cases.
Hospitals that deploy these systems tend to find use cases we didn’t anticipate when we designed it. A neurosurgeon in Brazil uses the streaming feed to co-operate with a colleague in São Paulo without either of them leaving their hospital. A teaching hospital in Southeast Asia records every laparoscopic cholecystectomy and builds a library for incoming residents. An ENT department archives rare cases that would otherwise exist only in the memory of whoever was in the room that day.
The AM-Panalex-A carries full CE certification under our ISO 13485 quality system. Installation is standard ceiling-mounted with the same mounting plate and arm assembly our other surgical lights use — meaning if your facility already has Ascend Medtech lights, the infrastructure is compatible. If you’re starting fresh, our technical team provides mounting templates and remote support for your local installers.
If you’re outfitting a teaching OR, building a surgical simulation lab, or simply want every procedure in your department to be reviewable and shareable, this is the system that makes it happen without adding complexity to the room. Send us an inquiry with your ceiling height and mounting configuration, and we’ll put together a complete specification. The recording shouldn’t be harder than the surgery.
