Overview

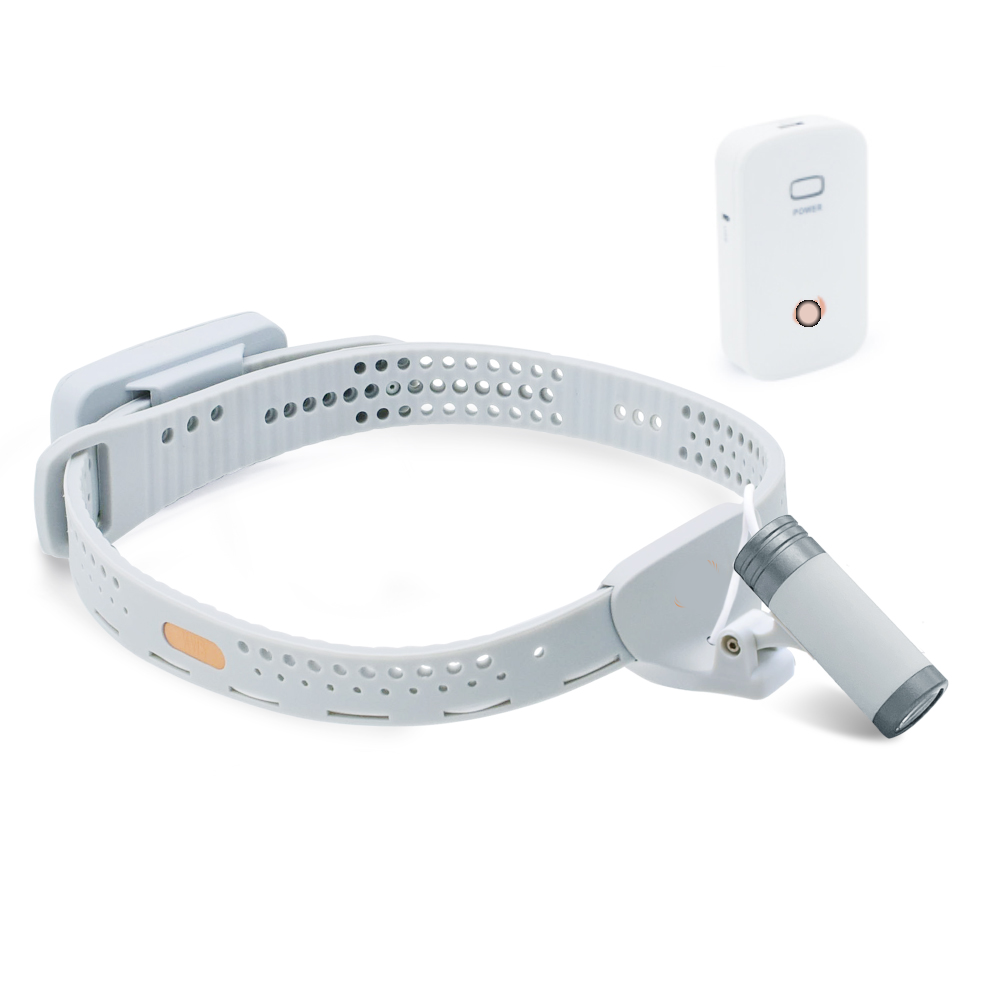

The KD-205AY-4 is an ultra-light surgical headlight featuring an international-brand 5W LED delivering up to 30,000 Lux in dual-mode (spot + flood) at just ≤170g headband weight. The integrated light-and-battery design, daylight-balanced 4,300–5,300K color temperature, and dual-battery configuration (3h + 7h) make it suitable for ENT, dental, ophthalmic, aesthetic, and general surgery applications.
Key Specifications
| Parameter | Value |
|---|---|
| Light Source | LED 5W (international brand) |
| Power Supply | AC 100–240V, 50/60Hz (Lithium battery) |
| Color Temperature | 4,300–5,300K |
| Beam Mode | Spot + Flood (dual) |
| Illuminance (Low) | ≈15,000 Lux |
| Illuminance (High) | ≈30,000 Lux |
| Operating Time | 3h + 7h (dual battery) |
| Headband Weight | ≤170 g |
| Packaging | Carton |
Design Features
- International-brand 5W LED — correct color temperature, high brightness
- Dual beam modes: spot for focused detail, flood for wider field
- Integrated light-and-battery — ultra-light at ≤170g
- Dual battery system for extended operation (3h + 7h)
- Physical thermal management — no fan, no flicker
Frequently Asked Questions
What is the difference between spot and flood modes?
Spot mode provides a concentrated beam for deep-cavity illumination. Flood mode provides a wider, more diffuse field for surface examination. Switching between modes allows one headlight to serve different procedural needs without changing equipment.
How does the dual battery work?
Two lithium batteries provide 3 hours (primary) + 7 hours (secondary) of combined runtime. The primary battery can be recharged while the secondary is in use for virtually continuous operation.
What documents are available for import?
Conformity documentation is confirmed by model, legal manufacturer, and destination market. Contact us with your destination country.
