Overview
The KD-2009W-1 is a versatile 9W LED examination light featuring three international-brand 3W LEDs with adjustable brightness. Delivering up to 16,000 Lux at 400 mm working distance, it serves outpatient clinics, gynecology, dental practices, veterinary medicine, and industrial inspection applications. Available in table-mount, rail-mount, wall-mount, and floor-stand configurations.
Key Specifications
| Parameter | Value |
|---|---|
| Light Source | LED 9W (3 × 3W international brand) |
| Power Supply | AC 100–240V, 50/60Hz |
| Color Temperature | 3,800–5,000K |
| Illuminance | ≥16,000 Lux |
| Working Distance | 400 mm |
| LED Lifespan | ≥50,000 hours |
| Net Weight | 1.5 kg |
| Packaging (Clamp) | 600 × 120 × 260 mm |
| Packaging (Floor Stand) | 845 × 215 × 155 mm |
Design Features
- Three international-brand 3W LEDs — bright, cool-running, long-life
- Linear brightness adjustment for examination-specific illumination
- Flexible gooseneck arm bends freely and holds position

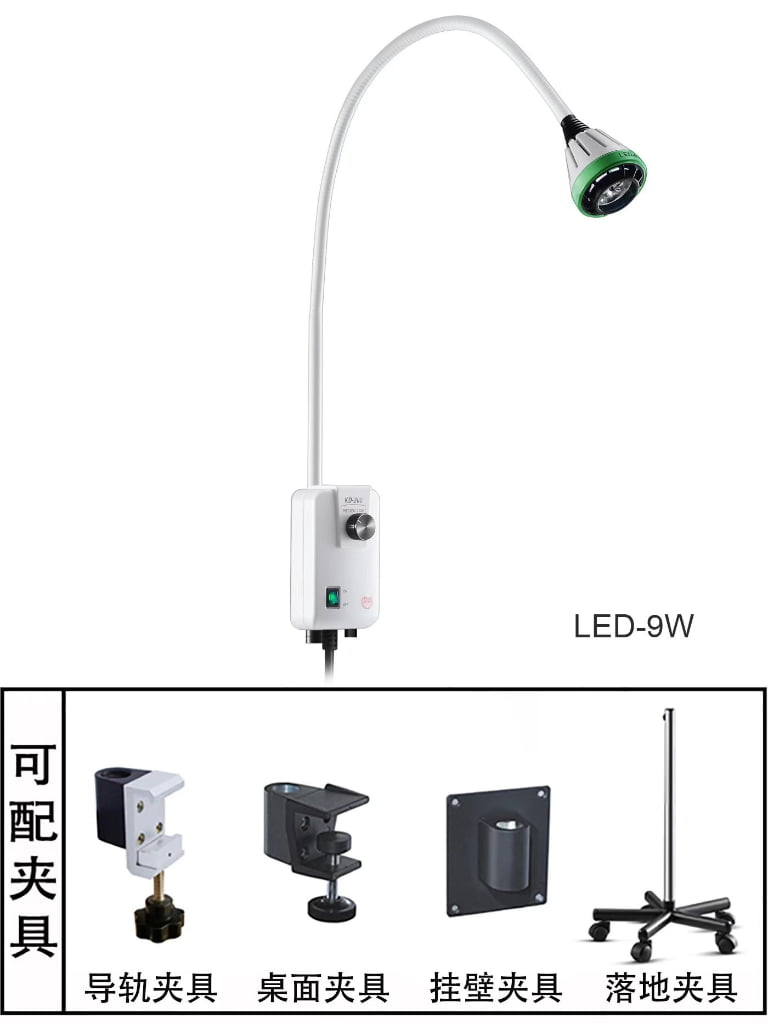

- Four mounting configurations: table clamp, rail clamp, wall bracket, floor stand
- Cost-effective for multi-room clinic deployments
Clinical Applications
- Outpatient clinics
- Gynecological examination
- Veterinary clinics
- Medical aesthetics
- Dental examination
- Industrial product inspection
- Jewelry appraisal
Frequently Asked Questions
Is the brightness adjustable?
Yes, the KD-2009W-1 features linear brightness control, allowing clinicians to dial in the appropriate illumination level for each examination type. The LED runs cool even at maximum output, with no noticeable temperature rise on the patient side.
How does it compare to the KD-2005W-1?
The KD-2009W-1 uses three 3W LEDs (9W total) versus a single 5W LED, providing higher total output and broader coverage. Both offer adjustable brightness and multiple mounting options. Contact us for a detailed comparison to determine the best model for your clinical workflow.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country. Contact us with your destination country for the applicable documentation package.
