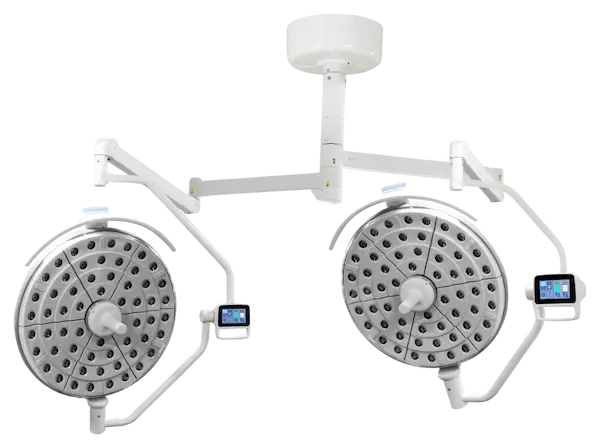

Advanced Surgical Lighting: The AM-LED700/500-YY Precision Shadowless System
In a modern operating room, tiny shadows and small color shifts can delay critical decisions. Surgeons do not simply need “more brightness.” They need visual truth: stable illumination, accurate tissue color, and consistent clarity at depth.
The AM-LED700/500-YY surgical lighting system is engineered for that outcome. Its dual-head optical overlap design builds a layered light field that minimizes hand and head shadows across the surgical site, while supporting laminar-flow OR requirements and safety expectations aligned with IEC 60601-2-41.
External reference: IEC
1) Outcome Hook: Lighting Built for Maximum Clinical Precision
In high-stakes procedures, the OR team cannot afford “almost clear.” Even brief loss of visibility can mean:
- slower decision-making
- repeated repositioning
- increased fatigue during long cases
AM-LED700/500-YY surgical lighting is positioned as a precision instrument for operating rooms that demand stable clarity. Instead of relying on a single light source, the dual-head design creates redundancy in illumination angles, so the field stays readable during real movement.
E-E-A-T signal: This surgical lighting platform is designed for use in advanced OR environments, including laminar flow rooms, where airflow management and infection control considerations are part of procurement standards.
2) Optical Mastery: True Shadowless Control with Multi-Prism Compensation
Shadowless control via hundreds of LED emitters
A shadowless system is not “one strong beam.” It is multi-point optical overlap.
The AM-LED700/500-YY surgical lighting system uses hundreds of independent LED units to create intersecting light paths. If part of the light is blocked by a surgeon’s head, shoulders, or hands, other angles continue to fill the field. This is how the system maintains surgical-site visibility under real workflow conditions.
Illumination depth for deep-cavity clarity
Depth matters when the working area extends beyond surface tissue. The AM-LED700/500-YY is designed to maintain focus and clarity into deeper fields:
- Illumination depth: $L_1 + L_2 \ge 1200\text\{ mm\}$
That depth performance is a core reason why dual-head surgical lighting is often preferred in mid-to-large operating rooms.
Related search-intent keywords supported: operating theater lights, LED medical lamp, shadowless surgery lighting.
3) Spectral Precision: R9 and Real Tissue Color (Clinical Accuracy)
A bright field is not enough if color is distorted. Surgeons rely on subtle color cues to differentiate tissue layers, vessels, nerves, and bleeding points.
High CRI for true color rendering
- Ra 95
High CRI supports more accurate visual interpretation of fine tissue differences. In practical terms, it reduces “visual guessing” and helps surgeons stay confident in what they see under surgical lighting.
High red rendering for blood-rich fields
- R9 90
R9 is especially important in cases where red-spectrum accuracy is critical (for example, liver, cardiovascular, and other blood-rich fields). A high $R_9$ surgical lighting system helps maintain natural-looking reds, improving perception of tissue and bleeding control.
Adjustable color temperature to reduce fatigue
- $3500\text\{K\} \text\{–\} 5000\text\{K\}$ adjustable
This range allows teams to match lighting preferences and procedure types, simulating more natural light and helping reduce fatigue during multi-hour cases.
4) Heat Management & Laminar Flow: Designed for Safety and Compliance
Cold light performance (patient and workflow safety)
LED cold light technology helps reduce thermal impact at the surgical site:
- Temperature rise at the field: $\le 1\text\{°C\}$
Lower heat helps reduce tissue dehydration risk and improves comfort during prolonged operations. A safer surgical lighting system supports better intraoperative conditions.
Aerodynamic “YY” head shape to protect laminar airflow
Laminar flow ORs are sensitive environments. The YY series uses a streamlined, ultra-thin head design to reduce airflow disruption. This matters because airflow stability supports contamination control strategies in high-level sterile rooms.
High illumination capability
- Max illuminance (single head): $160,000\text\{ Lux\}$
This supports crisp visibility while maintaining a design focus on thermal control and airflow compatibility, the combination professional buyers expect from advanced surgical lighting.
5) User Experience: Control, Positioning, and Optional Imaging
Endoscopy mode (one-touch low illumination)
Endoscopy and minimally invasive workflows often require lower background light. One-touch low-illumination mode supports better screen visibility while keeping the field appropriately lit.
Imported balancing arm system (precision positioning)
A premium balancing arm is a performance component. The design goal is:
- smooth movement
- accurate positioning
- “move and stop” stability with minimal drift
A surgical lighting system should stay exactly where the surgeon places it.
Optional integrated HD camera
The AM-LED700/500-YY can be configured with an HD camera option to support:
- surgical teaching
- recording and documentation
- remote consultation workflows
6) Specification Table (Optimized for Google SGE / AI Summaries)
| <strong>Specifications</strong> | <strong>AM-LED700 (YY)</strong> | <strong>AM-LED500 (YY)</strong> | <strong>Clinical Value</strong> |
|---|---|---|---|
| Max illuminance | $160,000\text\{ Lux\}$ | $140,000\text\{ Lux\}$ | Sharper field visibility for high-precision work |
| Spot diameter ($d_{10}$) | $160\text\{–\}280\text\{ mm\}$ | $150\text\{–\}260\text\{ mm\}$ | Matches different incision sizes and procedure depth |
| CRI ($R_a / R_9$) | $\ge 95 / \ge 90$ | $\ge 95 / \ge 90$ | More realistic tissue and blood color perception |
| LED service life | $\ge 50,000\text\{ h\}$ | $\ge 50,000\text\{ h\}$ | Lower long-term maintenance and downtime |
| Head diameter | $700\text\{ mm\}$ | $500\text\{ mm\}$ | Wide coverage with complementary overlap |
7) Infection Control & Longevity: Built for Real OR Maintenance
Sterile handling with autoclavable handle
The system uses a detachable handle designed for high-temperature sterilization:
- Autoclave: $134\text\{°C\}$
That supports sterile field protocols and reduces handling risk.
Easy-to-clean, chemical-resistant housing
A high-quality aluminum alloy housing supports repeated wipe-down cycles and chemical exposure common in OR disinfection routines. Practical cleaning speed is a real advantage for any surgical lighting used in high-volume OR schedules.
Procurement trust signals
- CE
- ISO 13485
- IEC 60601-2-41 reference alignment
External references:
8) FAQ (Long-Tail + Voice Search Capture)
Q1: Why is a dual-head (700+500) surgical lighting system preferred for mid-to-large ORs?
Because dual-head surgical lighting creates overlapping illumination angles that reduce shadows from staff movement and instruments. It also improves coverage across wider surgical fields and supports deep-cavity clarity without constant repositioning.
Q2: How do you install ceiling surgical lighting without disrupting laminar flow?
The key is correct positioning, ceiling structure planning, and alignment with the OR’s airflow layout. Laminar-flow rooms typically require careful placement and professional installation to minimize airflow turbulence around the light heads and arms.
Q3: How energy-efficient is the AM-LED series compared with traditional halogen?
LED-based surgical lighting typically consumes less power and generates less heat than halogen systems, while offering longer service life. That combination reduces bulb replacement frequency and helps stabilize OR temperature over long procedures.
Request a Quote for AM-LED700/500-YY Surgical Lighting
If you are upgrading an operating room for higher precision, lower shadow risk, and laminar-flow compatibility, the AM-LED700/500-YY surgical lighting system is designed for that mission.also you could choose our gynecology table or medical pendant here
Share these details for a fast quotation:
- destination country and voltage
- OR type (laminar flow or standard)
- preferred configuration (dual-head ceiling mount, HD camera option)
- quantity and delivery timeline
