Product Overview

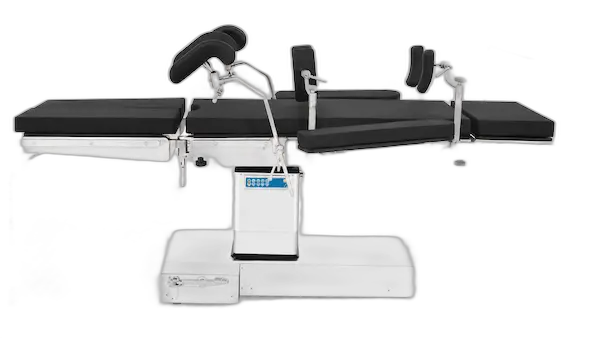

The HE-608-A is a next-generation electro-hydraulic operating table that replaces traditional electric push-rod actuation with precision microcomputer-controlled hydraulic transmission. Designed for general surgery, orthopedics, gynecology, urology, and neurosurgery, it delivers smoother positioning, higher load capacity, and superior long-term reliability.
The table features a T-shape base with a recessed footwell, allowing the surgical team to stand closer to the patient with less fatigue. The tabletop frame, column cover, and base are fabricated from 304 stainless steel with a matte electroplated finish that diffuses surgical lighting and reduces eye strain.
Key Specifications
| Parameter | Specification | Drive |
|---|---|---|
| Height Adjustment | 690 – 990 mm (770 – 1,070 mm incl. mattress) | Electro-hydraulic |
| Tabletop Length | 2,080 mm | — |
| Tabletop Width | 525 mm (580 mm incl. side rails) | — |
| Longitudinal Slide | 300 mm | Electric |
| Trendelenburg / Reverse Trendelenburg | 30° / 30° | Electric |
| Lateral Tilt (Left / Right) | 20° / 20° | Electric |
| Back Plate (Up / Down) | ≥85° / ≥40° | Electric |
| Leg Plate (Up / Down) | 60° / ≥90° | Pneumatic (removable) |
| Leg Plate Outreach | ≥90° | Pneumatic |
| Head Plate (Up / Down) | 50° / 90° | Pneumatic (detachable) |
| Built-in Kidney Bridge | 0 – 125 mm | Manual |
| Safety Load Capacity | 350 kg | — |
| One-Key Reset | Yes | — |
| One-Key Flex / Reflex | Yes | — |
| Battery Backup (Power Storage) | Yes | — |
| Backup Control Panel | Yes | — |
Design Features
- Electro-Hydraulic Drive System — Microcomputer-controlled hydraulic transmission replaces electric push rods for smoother, more precise positioning and greater durability. The main hydraulic components are imported.
- T-Shape Base — Recessed footwell gives surgeons room to step closer to the patient, reducing fatigue during long procedures.
- 304 Stainless Steel Construction — Tabletop frame, column cover, and base in matte electroplated finish. Impact-resistant, easy to clean, and designed to diffuse OR lighting.
- Germany Stabilus Pneumatic Springs — Head plate and leg plate adjustments use imported Stabilus gas springs for stepless positioning with high load capacity and long service life.
- Seamless PU Mattress — Biocompatible anti-static PU outer skin with seamless bonding. Internal 30 mm memory foam + 40 mm high-density foam layer relieves patient pressure during prolonged surgery. Anti-bacterial and anti-static.
- Built-in Kidney Bridge — 0–125 mm electric adjustment with no exposed metal rods underneath, allowing unobstructed C-arm access.
- Mechanical Brake — Low failure rate, simple operation, excellent stability compared to electromagnetic alternatives.
- Auto-Separating Leg Plate Gears — Outreach teeth disengage automatically for smooth lateral adjustment.
- Dual Control — Handheld controller plus column-mounted backup control panel with one-key reset and one-key flex/reflex positioning.
- Battery Backup — Onboard power storage enables full operation even when mains power is interrupted.
Clinical Applications
The HE-608-A is suitable for a wide range of surgical disciplines:
- General Surgery — Flexible positioning range with Trendelenburg and lateral tilt
- Orthopedic Surgery — 350 kg load capacity and 300 mm longitudinal slide accommodate C-arm imaging
- Gynecology & Urology — Leg plate outreach ≥90° with detachable leg sections for lithotomy positioning
- Neurosurgery — Precise microcomputer-controlled positioning with one-key presets
- ENT & Ophthalmology — Low minimum height (690 mm) supports seated surgeon ergonomics
Model Comparison
| Specification | AM-Y09B CDW | AM-Y09B GK (Ortho) | AM-Y09B DHYX (Imaging) | AM-19A ZN |
|---|---|---|---|---|
| Table size | 217×55 cm | 217×55 cm | 240×53 cm | 207×50 cm |
| Height range | 55–105 cm | 68.5–113.5 cm | 70–100 cm | 65–90 cm |
| Lateral tilt | 20°/20° | 20°/20° | 18°/18° | ≥20°±5° |
| Trendelenburg/Reverse | 30°/30° | 30°/30° | 22°/22° | ≥30°±5° |
| Back plate | 90°/40° | 90°/40° | 60°/18° | up ≥80°/down ≥35° |
| Kidney bridge | 12 cm | 12 cm | — | ≥120 mm |
| Longitudinal slide | 30 cm | 35 cm | 26 cm (electric) | ≥360 mm |
| Load capacity | 250 kg | 350 kg | — | — |
Standard Accessories
- Mattress — 1 set
- Hand Controller — 1 pc
- Waist Support — 2 pcs
- Shoulder Support — 2 pcs
- Arm Board — 2 pcs
- Leg Holder — 2 pcs
- Anesthesia Screen — 1 pc
- Clamp — 2 pcs
