Overview

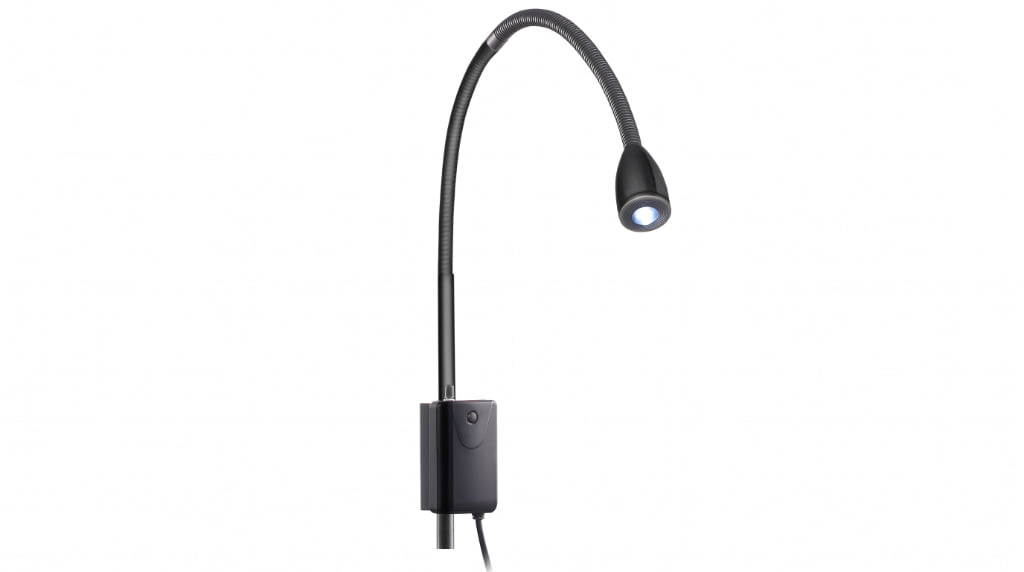

The KD-2003W-3 is an economy LED examination light offering reliable illumination for routine clinical examinations. With a 3W LED source delivering up to 13,000 Lux at 200 mm, it provides clear, uniform light at a cost-effective price point. Available in table-mount, rail-mount, wall-mount, and floor-stand configurations.
Key Specifications
| Parameter | Value |
|---|---|
| Light Source | LED 3W |
| Power Supply | AC 100–240V, 50/60Hz |
| Color Temperature | 4,000–5,000K |
| Illuminance | ≥13,000 Lux (at 200 mm) |
| Spot Diameter | φ100–140 mm (adjustable) |
| Working Distance | 400 mm |
| Net Weight | 1.2 kg |
| Packaging (Clamp) | 600 × 120 × 260 mm |
| Packaging (Floor Stand) | 845 × 215 × 155 mm |
Design Features
- Adjustable brightness control
- Flexible metal gooseneck arm for multi-angle positioning
- Four mounting options: table clamp, rail clamp, wall bracket, or floor stand
- Uniform light distribution with adjustable spot diameter
- Compact and lightweight for easy repositioning
Clinical Applications
- Gynecological examination
- Veterinary consultation
- Beauty and cosmetic procedures
- Dental examination
- Industrial product inspection and jewelry appraisal
Frequently Asked Questions
What mounting options are included?
The KD-2003W-3 is available with table clamp (standard), rail clamp, wall bracket, or mobile floor stand. Specify your preferred mounting configuration when requesting a quotation — each option uses different packaging dimensions as listed in the specifications.
Is the light intensity sufficient for detailed examination?
At 13,000 Lux with adjustable spot diameter (φ100–140 mm), the KD-2003W-3 provides adequate illumination for routine clinical examinations. For procedures requiring higher illuminance, consider our KD-2005W-1 (5W) or KD-2021W-1 (21W) models. Contact us for a comparison of the full range.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project. Contact us with your destination country for the applicable documentation package.
