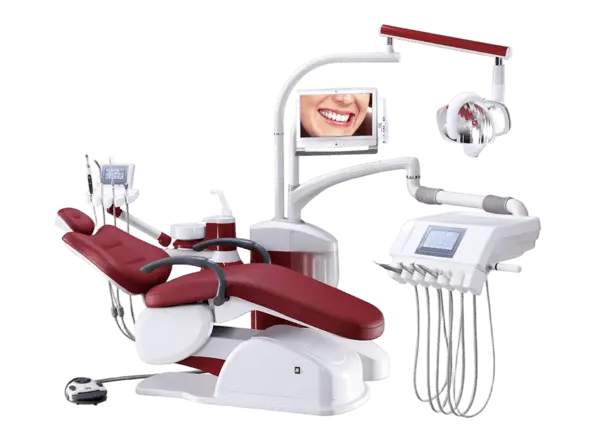

The AM-6800 is an electric dental chair unit with programmable memory positioning, an integrated LED operatory light, and a chair-base-mounted delivery system, designed for private practices and growing clinics.
Key Specifications
| Component | Technical Specification (AM-6800) |
|---|---|
| Drive System | 24V Silent DC Motor |
| Load Capacity | ≤190 kg / 420 lbs |
| LED Operating Light | 8,000–30,000 Lux (Adjustable) |
| Backrest Movement | 0°–85° |
| Air Pressure | 0.5–0.8 MPa |
| Water Pressure | 0.2–0.4 MPa |
Features
- Electric memory positioning with programmable presets for repeatable working positions
- 9-memory position system for one-touch positioning
- Integrated LED operatory light with adjustable color temperature
- Delivery system mounted to the chair base, keeping hoses and handpieces off the floor
- Oversized ultra-fiber leather upholstery for extended procedures
- Double-jointed headrest adaptable for pediatric and geriatric positioning
- Rotatable ceramic spittoon for easier access and faster room reset
- Built-in pure water system for consistent water quality management
Applications
General dentistry clinics building new operatories or replacing aging dental units, with a focus on clinical efficiency, patient throughput, and predictable maintenance.
CE marking and ISO 13485 documentation can be confirmed for the specific model, configuration, legal manufacturer, and destination market.
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
