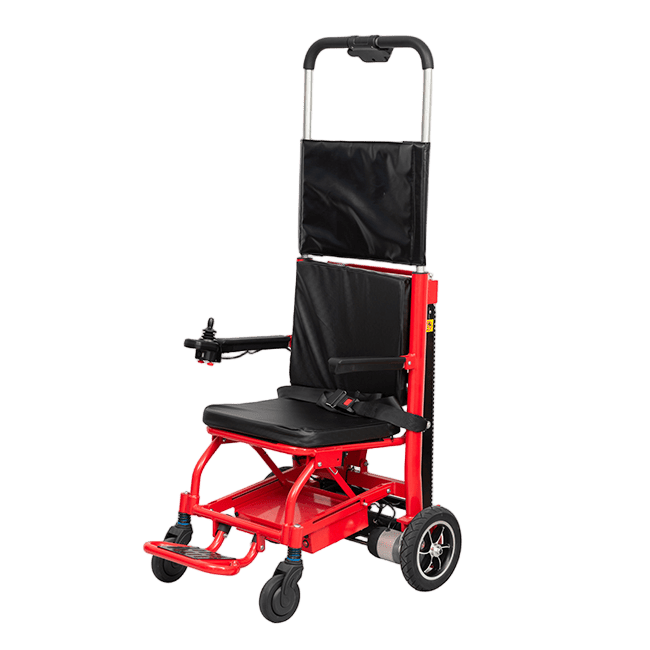

Not every EMS service needs the most expensive stair climber in our catalog. I built the AM-SW02 for the team that needs a reliable motorized stair chair without the premium price tag of our flagship models. It does the job that matters most — transporting patients up and down stairs safely, with electric-powered track drive doing the heavy lifting. For small-town ambulance services, community clinics, and home care providers who run one or two chairs, this hits the sweet spot between features and budget.
Electric stair climbing wheelchair is a wheelchair for going up and down stairs. With the help of electric motors and lithium batteries, the electric stair climbing wheelchair can easily transport patients up and down stairs.
Product Features
1. It is made of high strength aluminum alloy.
2. With removable and washable seat cushion and backrest.
3. The footrest can be folded up when not in use.

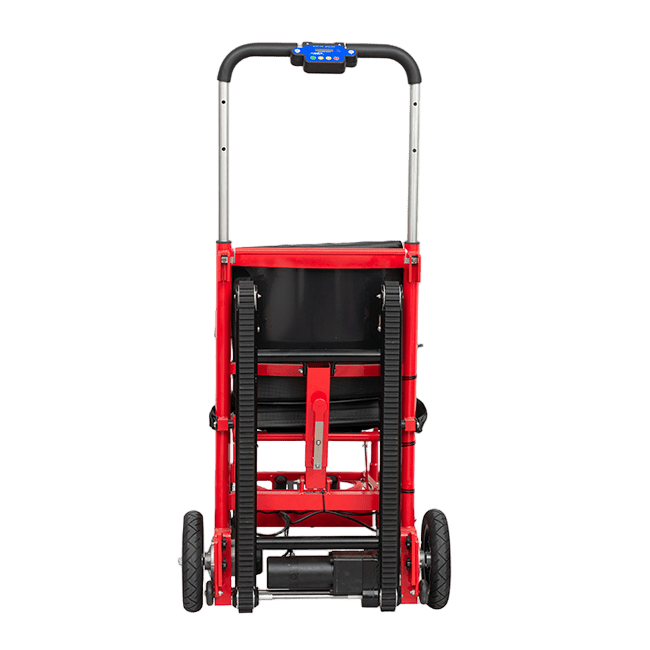

4. Three adjustable track angles behind the backrest, suitable for different floors.
5. Three positions of the lift rod can help operators of any size to move the lift rod on the stairs.

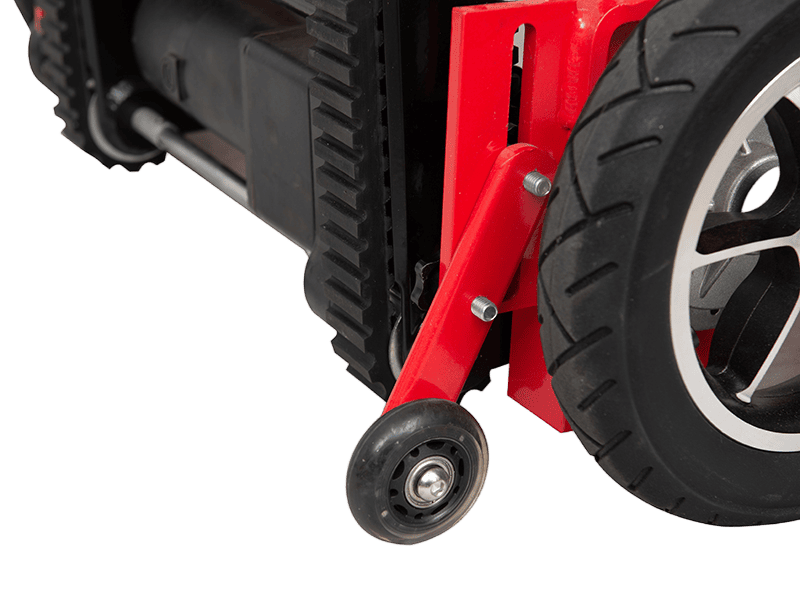

6. It only needs one person to operate. The track part can easily go up and down the stairs by touching three steps at the same time.

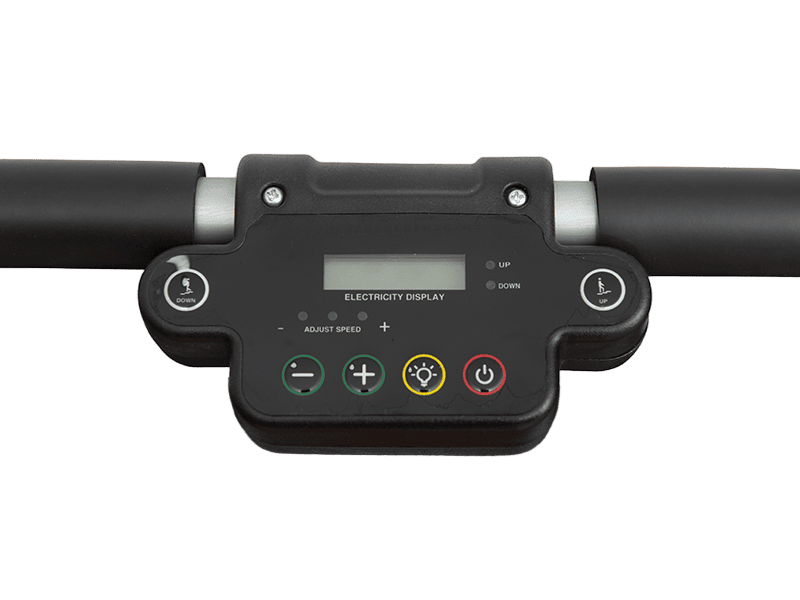

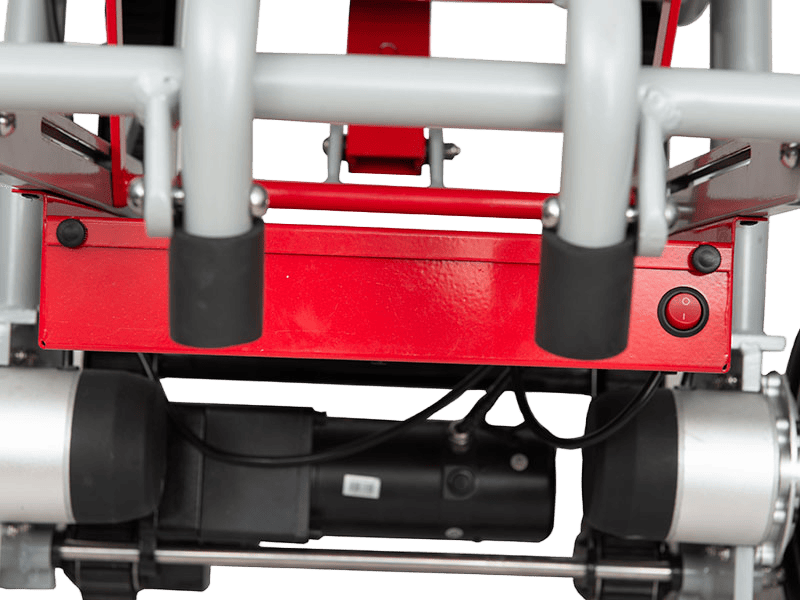

7. The controller of this chair is simple and easy to operate. It is powered by two motors to provide strong power.
8. Intelligent controller.
Product parameters
Model Comparison
| Specification | AM-ST003A | AM-SW01 | AM-SW03 | AM-SW02A | AM-SW02 | AM-SW04 | AM-SW05 |
|---|---|---|---|---|---|---|---|
| Material | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy |
| Expanded size | 158×47.5×104(+3.5) cm | 158×62×129(±1) cm | 158×62×129(±1) cm | 100×64×155(±3.5) cm | 100×64×155(±3.5) cm | 130×61×157(±1) cm | (81–135)×63×(101–158) cm |
| Folding size | 102×47.5×32(±3.5) cm | 102×62×31.5(±1) cm | 102×62×31.5(±1) cm | 100×64×32(±3.5) cm | 102×66×30(±3.5) cm | 101×61×32(±1) cm | 101×63×35 cm |
| Motor | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W (dual motor) | Carbon brush 200W (dual motor) | Carbon brush 200W |
| Battery | 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | 24V/13AH (MAX) | 24V/13AH (MAX) | 24V/13AH (MAX) |
| Climbing speed | Avg 40 steps/min (5%) | 1s/1.2s/1.3s per step | Avg 40 steps/min (±5%) | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step |
| Load capacity | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg |
| N.W. | 28±2 kg | 31±2 kg | 30±1 kg | 37±2 kg | 37±2 kg | 31±2 kg | 32±2 kg |
| Climbing angle | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° |
| Front/Rear wheel | 3/5 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch |
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
