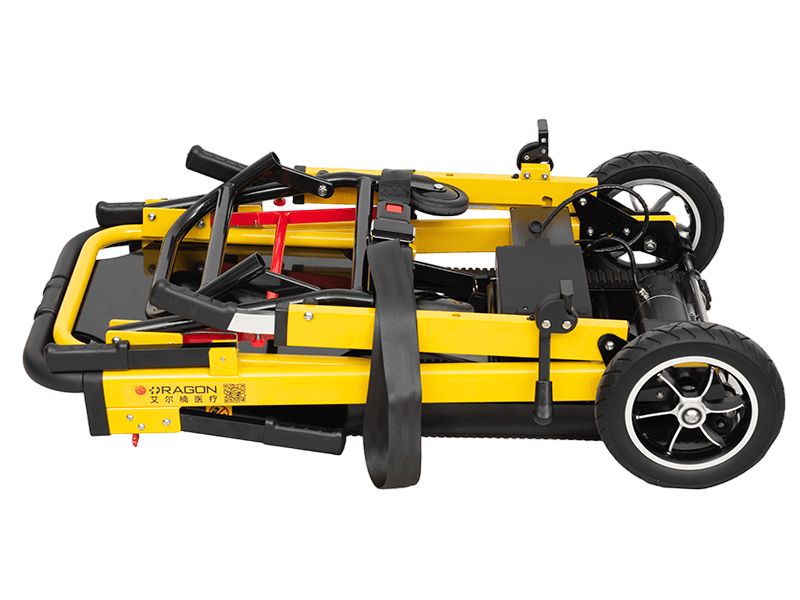

If you drive to your patients, you need a stair chair that fits in your car. The AM-SW01 is the only motorized stair wheelchair in our line that folds down compact enough for a standard trunk. I designed this for mobile physiotherapists, home-visit nurses, and rural care providers who show up at a patient’s door and find a staircase between them and the person they’re there to help. Electric track drive handles the climb — you just guide and steady. When the visit is done, fold it, stow it, drive to the next call.

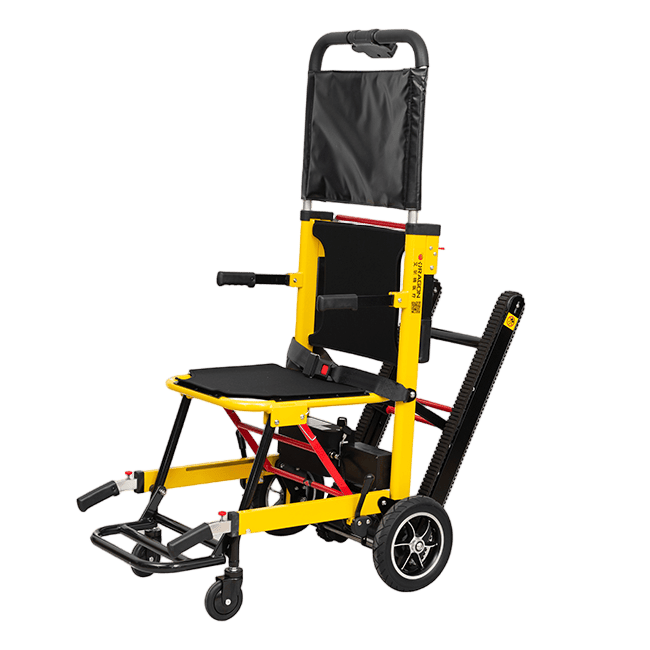

Electric stair climbing wheelchair is a wheelchair for going up and down stairs. With the help of electric motors and lithium batteries, the electric stair climbing wheelchair can easily transport patients up and down stairs.
Product Features
For hospitals. First aid center. Fire fighting. Emergency rescue. Family up and down the stairs to pull the goods used.
This stair stretcher is mainly used in high-rise buildings to transfer patients up and down the stairs, only one person can be used.
Independent tracked structure, the stretcher is convenient when going down the stairs.
1. It is made of high strength aluminum alloy.
2. It is equipped with removable and washable seat cushion and backrest.
3. The footrest can be folded up when not in use.
4. Three adjustable track angle behind the backrest, suitable for different floors.
5. Three positions of the lift rod can help operators of any size to move the lift rod on the stairs.
6. It only needs one person to operate. The track part can easily go up and down the stairs by touching three steps at the same time.

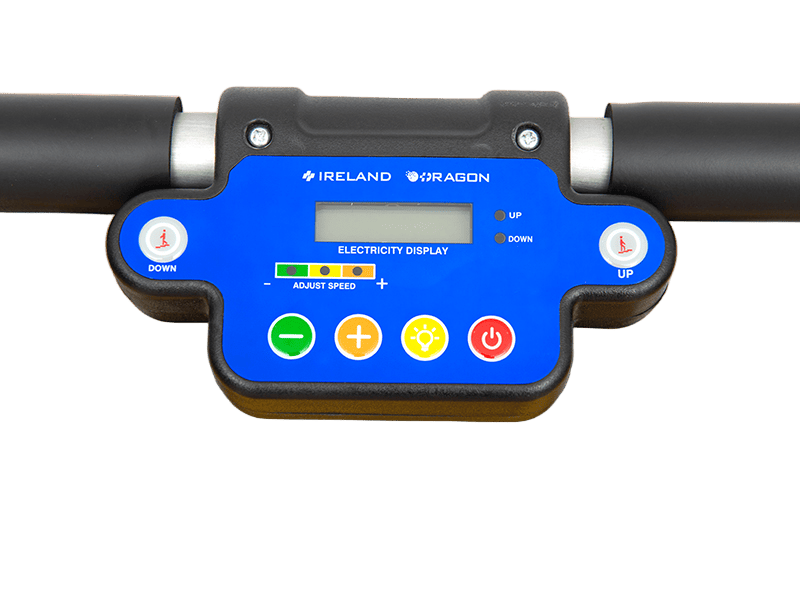

7. The controller of this chair is simple and easy to operate. It is powered by two motors to provide strong power.
8. Intelligent controller.
Product parameters
Model Comparison
| Specification | AM-ST003A | AM-SW01 | AM-SW03 | AM-SW02A | AM-SW02 | AM-SW04 | AM-SW05 |
|---|---|---|---|---|---|---|---|
| Material | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy | High strength aluminum alloy |
| Expanded size | 158×47.5×104(+3.5) cm | 158×62×129(±1) cm | 158×62×129(±1) cm | 100×64×155(±3.5) cm | 100×64×155(±3.5) cm | 130×61×157(±1) cm | (81–135)×63×(101–158) cm |
| Folding size | 102×47.5×32(±3.5) cm | 102×62×31.5(±1) cm | 102×62×31.5(±1) cm | 100×64×32(±3.5) cm | 102×66×30(±3.5) cm | 101×61×32(±1) cm | 101×63×35 cm |
| Motor | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W | Carbon brush 120W (dual motor) | Carbon brush 200W (dual motor) | Carbon brush 200W |
| Battery | 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | Lithium 24V/13AH (MAX) | 24V/13AH (MAX) | 24V/13AH (MAX) | 24V/13AH (MAX) |
| Climbing speed | Avg 40 steps/min (5%) | 1s/1.2s/1.3s per step | Avg 40 steps/min (±5%) | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step | 1s/1.2s/1.3s per step |
| Load capacity | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg | 159 kg |
| N.W. | 28±2 kg | 31±2 kg | 30±1 kg | 37±2 kg | 37±2 kg | 31±2 kg | 32±2 kg |
| Climbing angle | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° | ≤50° |
| Front/Rear wheel | 3/5 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch | 5/10 inch |
Frequently Asked Questions
What specifications should I review for this model?
Key specifications including dimensions, capacity, power requirement and material composition are provided in the model datasheet. Contact us with your project requirements for the complete specification sheet.
What documents are available for import?
Datasheet, user manual, packing information and applicable conformity documents are confirmed per destination market. Registration requirements vary by country and are reviewed project by project.
Can I request a sample or reference installation?
Sample availability and reference installation details are confirmed based on the product category and order volume. Contact us with your specific requirements.
