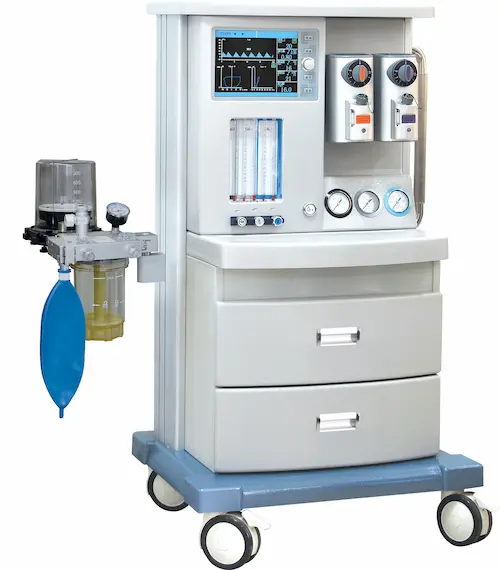

The AM-850 is our mid-range anesthesia workhorse — four independent flowmeters for O2, N2O, and air, an integrated ventilator with volume and pressure modes, and a compact CO2 absorption system that keeps the circuit closed and efficient. I designed this machine for hospitals that run four to eight ORs daily with a mix of general surgery, orthopedics, and obstetrics — not the university hospital with a dedicated cardiac anesthesia team, but the regional center where the same machine needs to handle a C-section at 10 AM and a laparoscopic cholecystectomy at noon.
| Model | AM-850 |
| Type | Compact anesthesia workstation |
| Ventilation Modes | IPPV, SIMV, MANUAL, PEEP, Pressure Support |
| Flowmeter | O2 (0–10 L/min), N2O (0–10 L/min), double-tube type |
| Vaporizer | Selectatec compatible, single or dual vaporizer mount |
| Absorber | Circle system, 1.5 L soda lime capacity |
| Breathing Circuit | Integrated, autoclave-safe at 134 °C |
| Ventilator Display | 7″ TFT color touchscreen |
| Monitoring | TV, MV, RR, I:E, Paw, PEEP, FiO2 waveform |
| Gas Supply | O2 / N2O DISS or NIST quick-connect |
| Power Supply | AC 100–240 V, 50/60 Hz; built-in battery >2 h backup |
| Dimensions (W×D×H) | 52 × 58 × 130 cm (with top shelf) |
| Weight | ~65 kg |
| Accessories | Bellows assembly, sample line, CO2 sensor |
| Available documents | Model-specific CE/DoC, IEC 60601-1 and manufacturer ISO 13485 compliance — confirmed by model, configuration and legal manufacturer |
| Pneumatically driven and electrically controlled system |
| Built-in ventilator, 8.4” LCD display screen |
| Closed; Semi-Closed; Semi-Open wotking mode |
| Applied for Adult and Pediatric |
| Main technical specifications: |
| Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa. |
| 5-tubes Flowmeters, O2 & N2O & Air ; 0.1L/Min ~ 10L / Min; |
| Oxygen Flush: 25~75 L / Min |
| Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,VCV,PCV,PEEP,SIGH,MANUAL |
| Tidal Volume: Adjustable range: 20 ~ 1500 ml, Display range:0~2000ml |
| I/E Ratio: 8:1 ~ 1:10 |
| Two vaporizers: Enflurane/ Isoflurane/Sevoflurane (Optional:Halothane) |
| Vaporizer Setting Range: 0.5%~5% |
| Respiration Frequency : 1~100 bpm; |
| Lung compliance: ≤30 mL / kPa |
| IMV frequency: 1~20 bpm; |
| PEEP: 0 ~ 2.0 kPa |
| Ptr: -1.0kPa ~ 2.0 kPa |
| CO2 absorber capacity : 1 kg |
| Inspiratory Plateau: 0~1 S ; |
| O2 Concentration: 21%~100% |
| Optional: Patient monitor |
| Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea, |
| oxygen concentration, AC power malfunction,Battery low power. |
