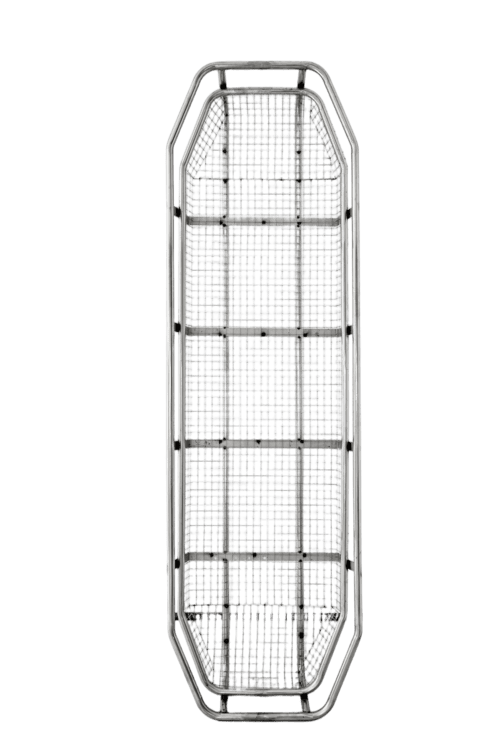

This is the basket stretcher we put our name on most proudly. The AM-BS001 is our flagship rescue basket — built from ASTM-certified 304 stainless steel with TIG-welded joints that won’t crack under load. When you’re lowering a patient down a cliff face or hoisting through a confined-space shaft, the welds are the only thing between the patient and the ground. I chose 304 stainless because it laughs at saltwater, blood, and disinfectant in ways aluminum never will. This is the stretcher for teams who say ‘good enough’ isn’t.
Product Features
The Stainless Steel Basket Stretcher from the basket stretcher is designed to perform in a technical rescue environment and features the patented StratLoad point. These allow for a quick and easy rescue bridle attachment and protect the bridle carabiner from walls and rock surfaces.

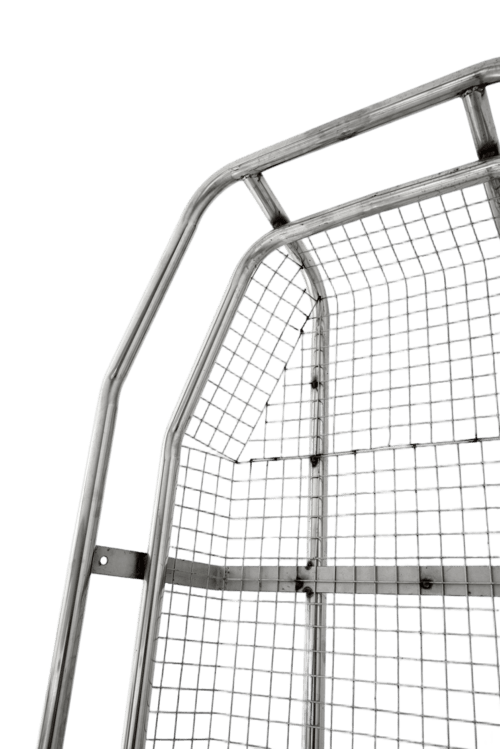

The Stainless Steel Basket Stretcher is constructed of high-quality materials to survive almost all conditions, while the design itself provides a user-friendly working platform. Constructed from TIG welded stainless steel, it relies on its frame geometry, construction methods and materials to achieve its ultimate strength.
Due to its frame geometry and TIG welded construction, the basket stretcher is very strong, durable and functional. The top rail is 1 inch in diameter to make the stretcher easier to maneuver when carrying it for extended periods of time, and it is reinforced with double tubes at the head and foot ends for extra strength during vertical lifts.
This basket stretcher is manufactured in a very wide range of emergencies, the basket stretcher is strong and flexible for all types of assistance in special situations.
The basket stretcher is a reliable accessory that allows first responders to operate it quickly. Equipped with special slinging equipment, the stretcher is ideal for helicopter lifting and transport.
The basket stretcher has an adjustable foot fixing mechanism and safety belt. The basket stretcher is also designed to be secured inside a helicopter. All materials used are available in sizes suitable for the job and are fire resistant.
The basket stretcher does not release any toxic or polluting substances and is protected for high abrasion and corrosion resistance. The frame is strong and durable, and the simple and reliable device allows the operator to take first aid measures quickly.
Product parameters
Model Comparison
| Specification | AM-BS001 | AM-BS002 | AM-BS003 | AM-BS004 | AM-BS005 | AM-BS008 |
|---|---|---|---|---|---|---|
| Material | Stainless steel | PE | PE | Stainless steel | Stainless steel | Stainless steel |
| Expanded size | 218×64×24 cm | 220×62.5×16.5 cm | 220×62.5×17.5 cm | 215.5×64×21 cm | 128×64×25 cm | 208×60×19 cm (BS008-1) 218×65×21.5 cm (BS008-2) |
| Folding | — | — | 124×62.5×20.5 cm | 115×64×35.5 cm | — | Separable 2-piece |
| Load limit | 159 kg | 300 kg | 300 kg | 159 kg | 159 kg | 300 kg |
| Net weight | 12.6 kg | 11.2 kg | 13.2 kg | 15.2 kg | 12.6 kg | 20–21 kg |
| Special | Aircraft hook, safety belt | Fire-resistant PE | Fire-resistant PE | Aircraft hook | Compact short model | Separable, 2 sizes |
