AM-PC10 Multifunctional combined stainless steel boarding (hospitalization) cage

Get Quote WhatsApp

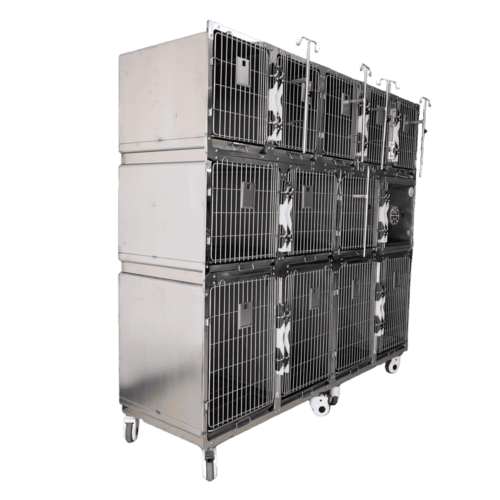

AM-PC10 Multifunctional combined stainless steel boarding (hospitalization) cage

Product Gallery

Click to view full size

Product Details

Product features.
  1. The cage body structure is reasonable, super pressure-bearing, strong and durable.
  2. Door lock unique sliding design, automatic locking, good security.
  3. High-frequency and high-current welding of the pedal grid and cage door, sturdy and non-desoldering.
  4. The dirt catching tray is tilted outward on all sides, leaving no dead corner and convenient for flushing.
  5. Seamless water blocking edge inside, more convenient and hygienic to use.
  6. The lower cage movable draw plate design, the draw plate can be changed into a large cage.
  7. Bottom mobile brake wheel, silent, wear-resistant, easy to shift and fixed.
  8. Innovative design of the cage, exquisite and chic. Combine at will, can be customized as needed.
  9. Equipped with oxygen chamber door, can efficiently and quickly replenish oxygen.
  10. Specification parameters.
    1. External dimensions: length 2400 depth 700 height 2140
    2. Upper cage: length 480 height 590 depth 700
    Middle cage: length 600 height 590 depth 700 Lower cage: length 600 height 820 depth 700
    1. Lower and middle cages: length 690, width 540, height 45
    Upper layer catching tray: length 690, width 420, height 45
    1. Lower and middle layer footing mesh: length 690, width 545, thickness 10
    Upper footing mesh: length 690 width 425 thickness 10
    1. Upper cage door: length 410 high 460 thick 8
    Middle cage door: length 530 height 460 thickness 8
    1. Lower cage door: length 530 high 690 thick 8
    2. Material Description. Overall 304 stainless steel material, anti-corrosion, acid-proof and rust-free, cage material thickness 1.2mm, cage door with diameter 8mm and diameter 6mm steel wire composition, tread grid with diameter 10mm and diameter 4mm steel wire composition, dirt catching plate material thickness 0.8mm. bottom mobile wheel using high-strength medical universal brake wheel.
