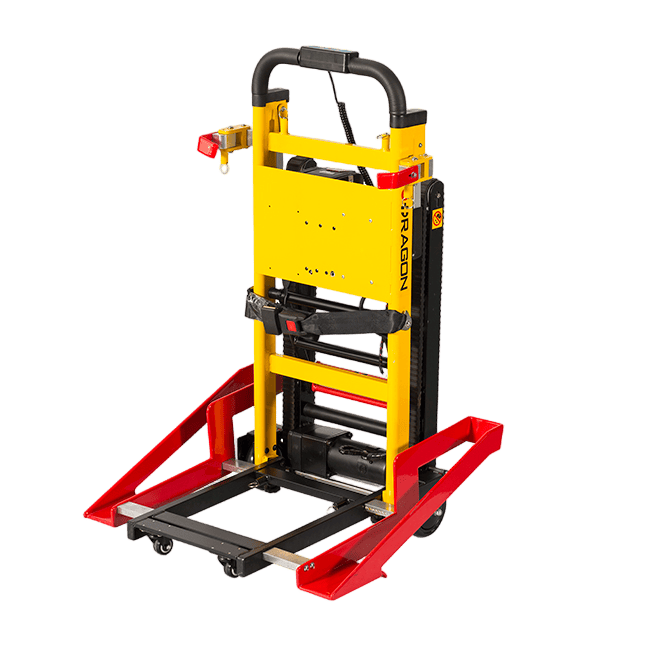

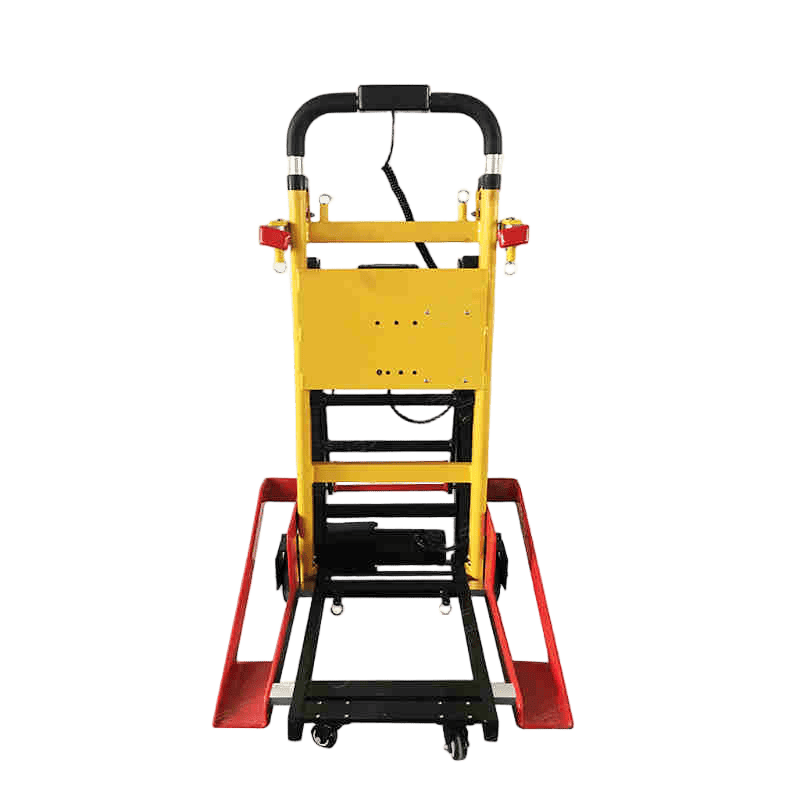

This is a kind of docking wheelchair Electric Stair Chair Lift. The existing wheelchair has only wheels, which are easy to slide when climbing the stairs, not convenient for climbing and dangerous. And this docking wheelchair stair climbing car, which is used to match the wheelchair for climbing, easy to go up and down the stairs, improve safety and easy to use.
Product Features
1、For hospitals. First aid center. Fire fighting. Emergency rescue. Family up and down the stairs to pull the goods used.
2、The stair stretcher is mainly used in high-rise buildings to transfer patients up and down the stairs, only one person can be used.
3、Independent crawler structure, the stretcher down the stairs for convenience.
4、The stretcher is made of aluminum alloy.
5、Wheel size: Φ125/41mm.
1, Smart Controller: Intuitive Operation
2, Ergonomic Curved Handle – Adjustable Height

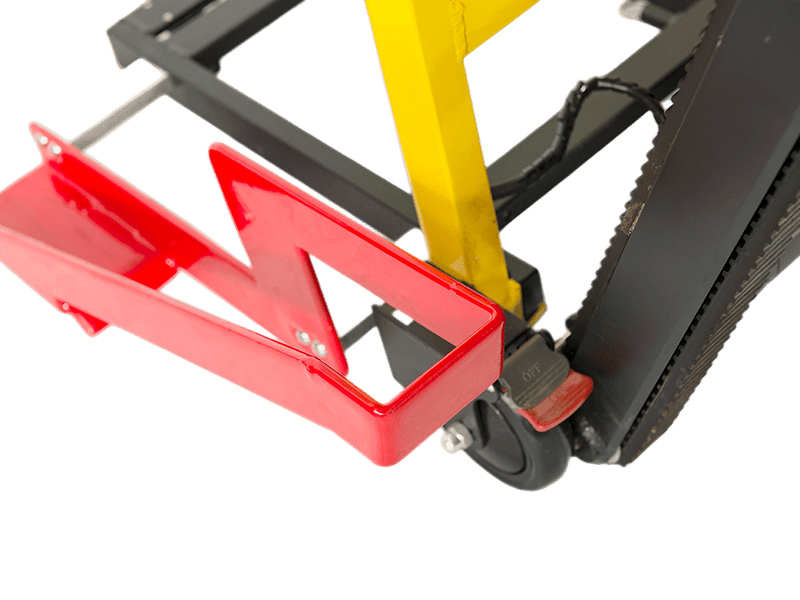

3, Adjustable Track Angle

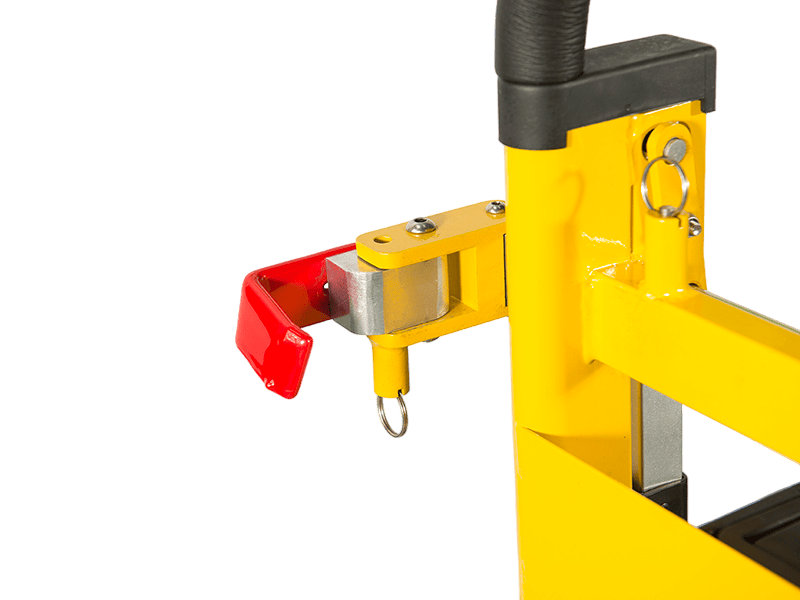

4, Wheelchair Fixation Handle
Product parameters
| Color Option |
Yellow |
| Material |
Aluminum |
| Unfold Size（L*W*H) |
88cm*57cm*165cm(±3.5cm) |
| Fold Size（L*W*H) |
105cm*50cm*23cm(±3.5cm) |
| Packing Size（L*W*H) |
109cm*58cm*31cm(±2cm) （Wooden Box） |
| N.W. |
33±2 kg |
| G.W. |
42±2kg |
| Front / Back Wheel Size |
2.5″/5″ |
| Track Angle |
＜35° |
| Loading Capacity |
169kg |
| Climbing Speed |
40 steps/mins±5% |
| Motor Spec |
24V 120W |
| Battery Spec |
24V/13.6Ah(Max) |
| Charging Voltage |
AC100-240v 50/60Hz |
| Using Time / Charger |
500 steps |
