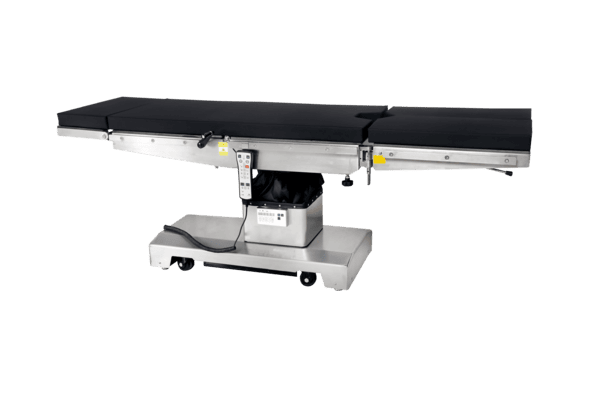

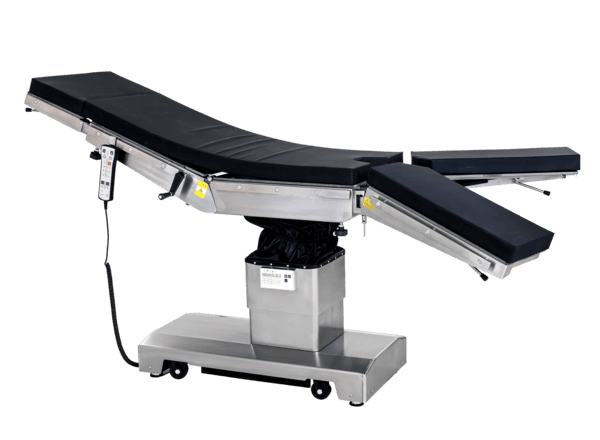

AM-09B GK Electric Hydraulic Operation Table

The microcomputer and dual controller control system is equipped with a safety lock for misoperation to ensure the safe completion of surgery to the maximum extent. The ultra-low surgical position (minimum 550 mm)and lifting stroke are designed for ophthalmology,brain surgery and other surgeries,so as to provide the surgeon with sufficient upper and lower adjustment range. The table can move forward and ackwardlongitudinally,without dead angle of the camera,and move longitudinally by 300 mm,realizing the whole C-arm camera.

Table size	217cm(L)*55cm(W)
Lifting table	68.5cm-113.5cm
Lateral tilt (Left/Right)	20°/20°
Reversed Trendelenburg/ Trendelenburg	30°/30°
Head rest (Up/down)	40°/ 90°
Back plate (Up/down)	90°/ 40°
Kidney bridge elevation	12cm/4.7in
Foot plate(up/down/horizontal position)	15°/90°/90°
Longitudinal sliding	35cm/13.8in
Load capacity	350KGS
