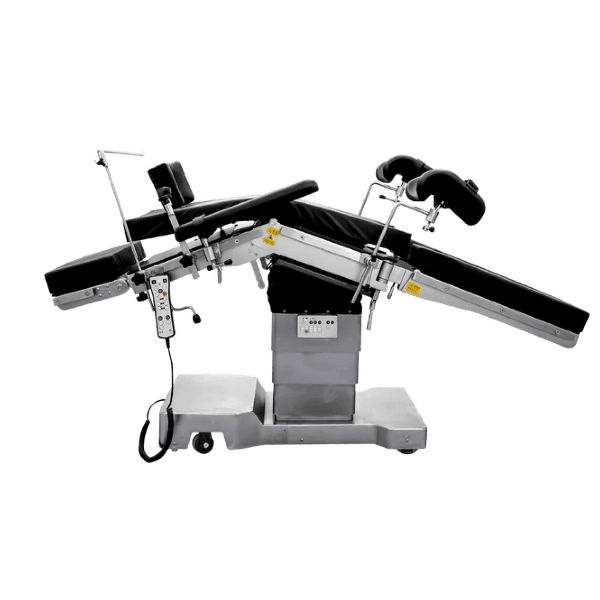

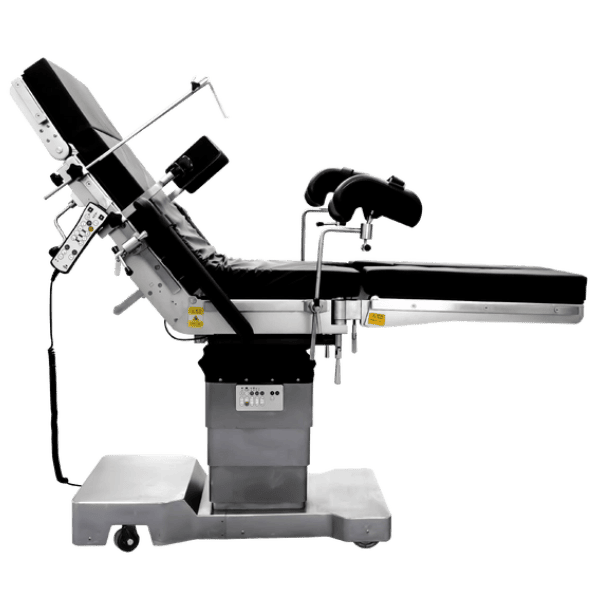

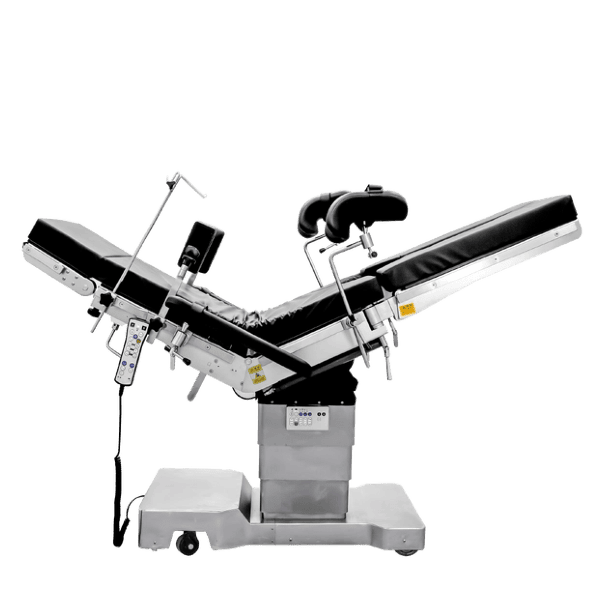

AM-09B CDW Electric Hydraulic Operation Table

The product belongs to class I, type B. Non AP or APG device , IPX4 device, continuous device. And possesses application  part. this  operating table is widely used in various surgical operations, which is fit for C-arm and X-Raying photographing. The table adopts electric hydraulic pressure and telecontroller to finish all the actions. High degree of automation and low noise, reliable, key parts are imported. Be sure to read the instruction carefully before using, and keep it.

Table size	217cm(L)*55cm(W)
Lifting table	55cm-105cm
Lateral tilt (Left/Right)	20°/20°
Reversed Trendelenburg/ Trendelenburg	30°/30°
Head rest (Up/down)	40°/ 90°
Back plate (Up/down)	90°/ 40°
Kidney bridge elevation	12cm
Foot plate(up/down/horizontal position)	15°/90°/90°
Longitudinal sliding	30cm
Load capacity	250KGS
