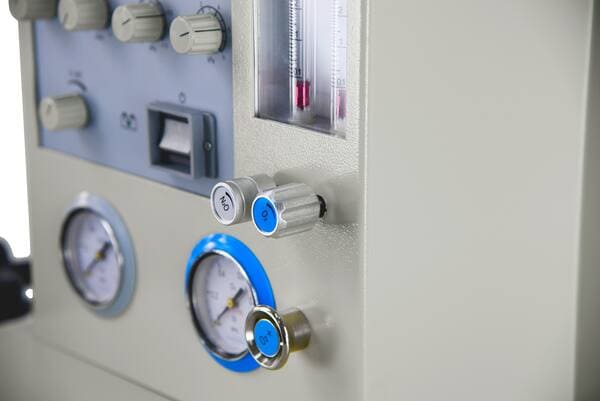

Click to view full size

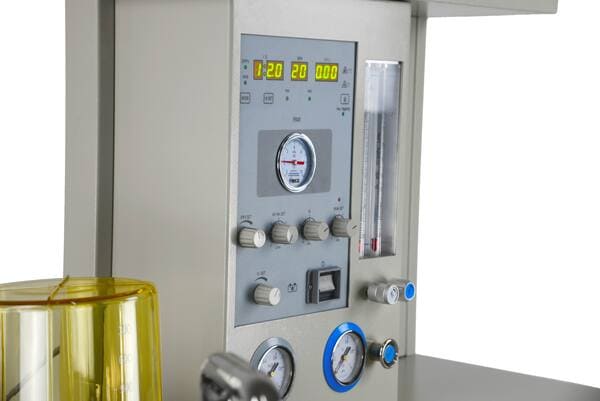

Click to view full size

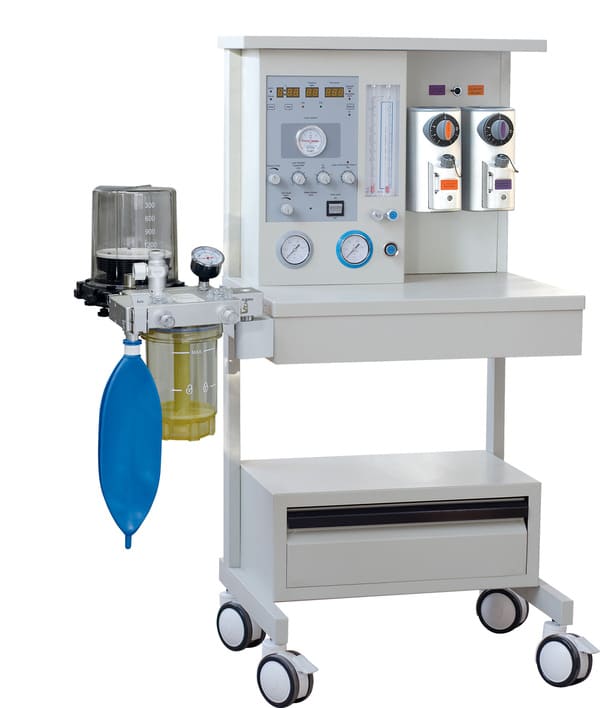

Click to view full size
| Pneumatically driven and electrically controlled system |
| Built-in ventilator, LED display screen |
| Closed; Semi-Closed; Semi-Open wotking mode |
| Applied for Adult and Pediatric |
| Main technical specifications: |
| Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa. |
| 2-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min; |
| Oxygen Flush: 25~75 L / Min |
| Respiration Mode: A/C,IPPV,SIPPV,MANUAL |
| Tidal Volume: 50~1500ml |
| I/E Ratio: 1:1.5 ~ 1:3.0 |
| Two vaporizers: Enflurane/ Isoflurane/Sevoflurane (Optional:Halothane) |
| Vaporizer Setting Range: 0.5%~5% |
| Respiration Frequency : 4~40 bpm; |
| Ptr: -1.0kPa ~ 1.0 kPa |
| CO2 absorber capacity : 1 kg |
| Optional: Patient monitor |
| Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea, |
| AC power malfunction,Battery low power. |
